Box corner to join square trusses (ref. TQN290)

Ref. DDO/TQN290

29 x 29 cm box corner to join square truss ref. TQN290, manufactured in aluminium (Alloy: EN-AW 6082 T6) and TIG welded for maximum strength.

This useful and versatile element offers multiple configurations with the 290 x 290 mm square truss without needing any additional elements.

The DDO/TQN290 six-sided box corner allows the creation of multiple configurations using as many sides of the cube (2, 3, 4, 5 or 6) as needed. By simply screwing on more connectors (ref. UTR-07) to the selected additional side, more usable sides can be added on according to the requirements of your set-up.

SPECIFICATIONS	DDO/TQN290
Dimensions:	29 x 29 x 29 cm
Main Tubes:	Ø 50 x 2 mm
Material:	Aluminium
Alloy:	EN-AW 6082 T6
Net Weight:	7.25 kg (without connectors)

For 29 x 29 cm truss

DDO/TQN290 box corner has different references depending on the number of ways/sides required:

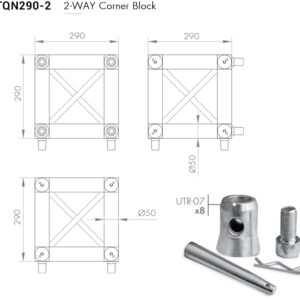

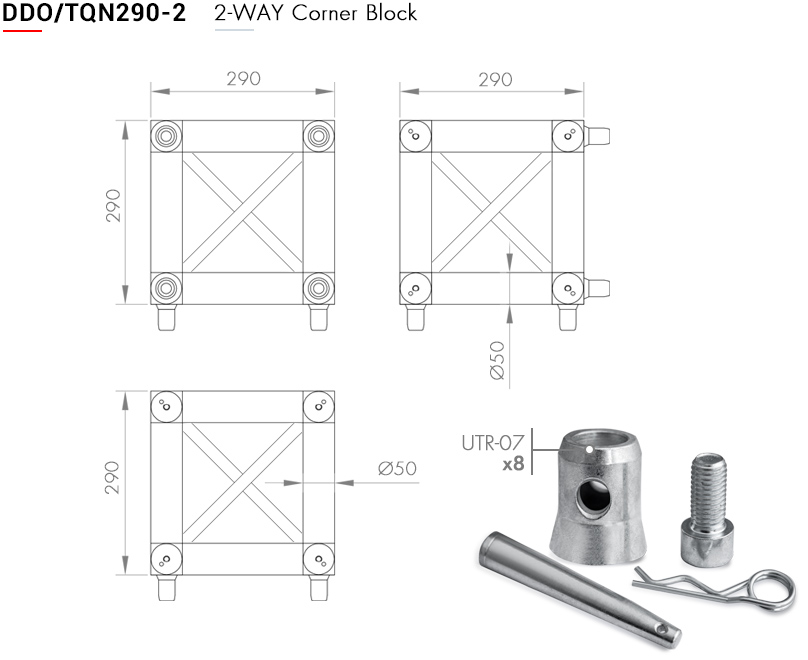

DDO/TQN290-2: Two-way aluminium box corner (equipped with 8 connectors ref. UTR-07) Net Weight: 8.70 kg (19.20 lb)
DDO/TQN290-3: Three-way aluminium box corner (equipped with 12 connectors ref. UTR-07) Net Weight: 9.40 kg (20.70 lb)

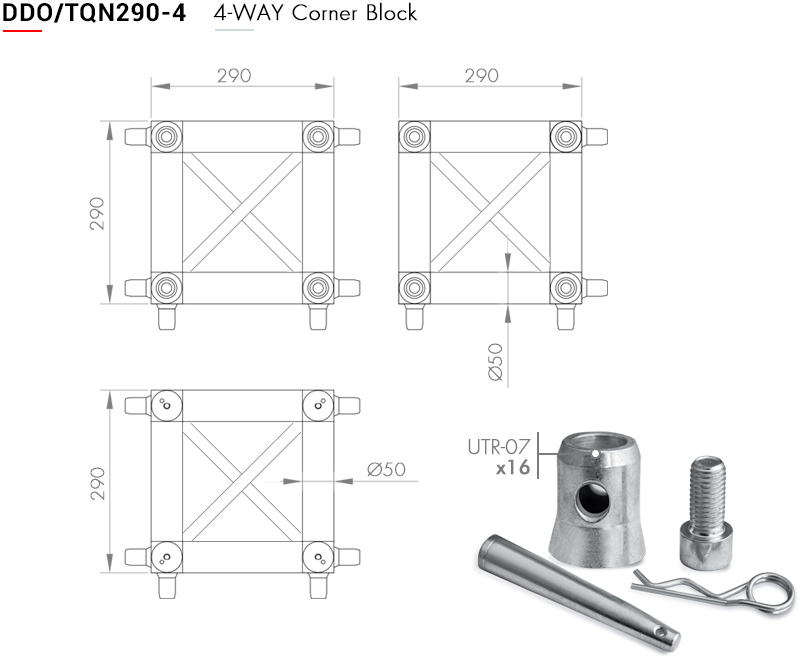

DDO/TQN290-4: Four-way aluminium box corner (equipped with 16 connectors ref. UTR-07) Net Weight: 10.15 kg (22.40 lb)

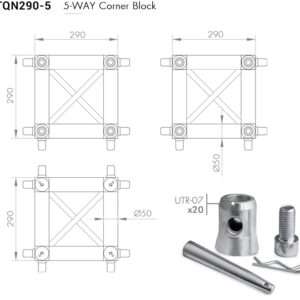

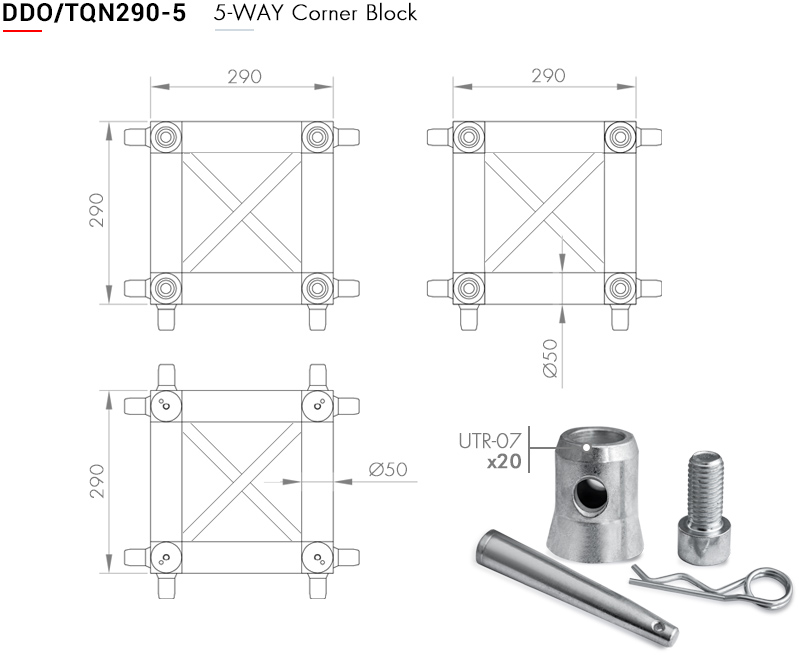

DDO/TQN290-5: Five-way aluminium box corner (equipped with 20 connectors ref. UTR-07) Net Weight: 10.85 kg (24 lb)

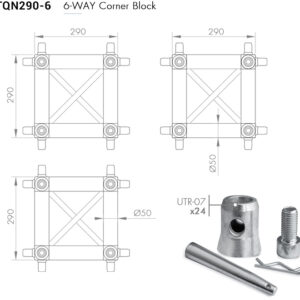

DDO/TQN290-6: Six-way aluminium box corner (equipped with 24 connectors ref. UTR-07) Net Weight: 11.60 kg (25.60 lb)

DDO/TQN290 six-sided box corners are tested according to the following standards:
