Box corner to join square trusses (ref. TQN400XL)
40 x 40 cm Box corner to join square truss ref. TQN400XL, manufactured in aluminium (Alloy: EN-AW 6082 T6) and TIG welded for maximum strength.
This useful and versatile element offers multiple configurations with the 40 x 40 cm square truss without needing any additional elements.
The DDO/TQN400XL six-sided box corner allows the creation of multiple configurations using as many sides of the cube (2, 3, 4, 5 or 6) as needed. By simply screwing on more connectors (ref. UTR-07) to the selected additional side, more usable sides can be added on according to the requirements of your set-up.
| SPECIFICATIONS | DDO/TQN400XL |
| Dimensions: | 40 x 40 x 40 cm |
| Main Tubes: | Ø 50 x 3 mm |
| Material: | Aluminium |
| Alloy: | EN-AW 6082 T6 |
For 40 x 40 cm truss
SAFETY
DDO/TQN400XL six-sided box corners are tested according to the following standards:
- DIN EN 1990 (EUROCODE 0)
- DIN EN 1991-1-1 (EUROCODE 1)
- DIN EN 1993-1-1 (EUROCODE 3)
- DIN EN 1999-1-1 (EUROCODE 9)
- DIN EN 1090-1
- DIN EN 1090-2
- DIN EN 1090-3
REFERENCES
DDO/TQN400XL box corner has different references depending on the number of ways/sides required:

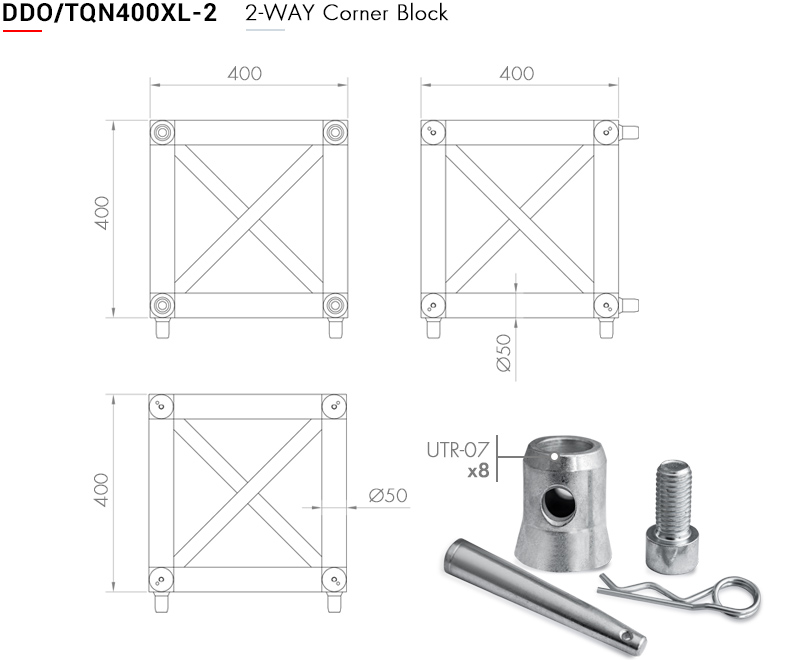

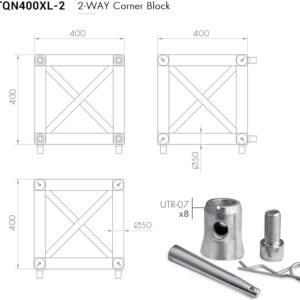

- DDO/TQN400XL-2: Two-way aluminium box corner (equipped with 8 connectors ref. UTR-07) Net Weight: 9.58 kg

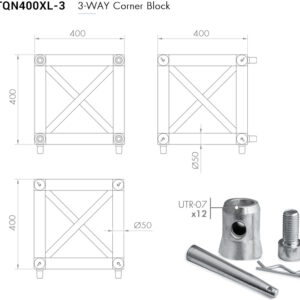

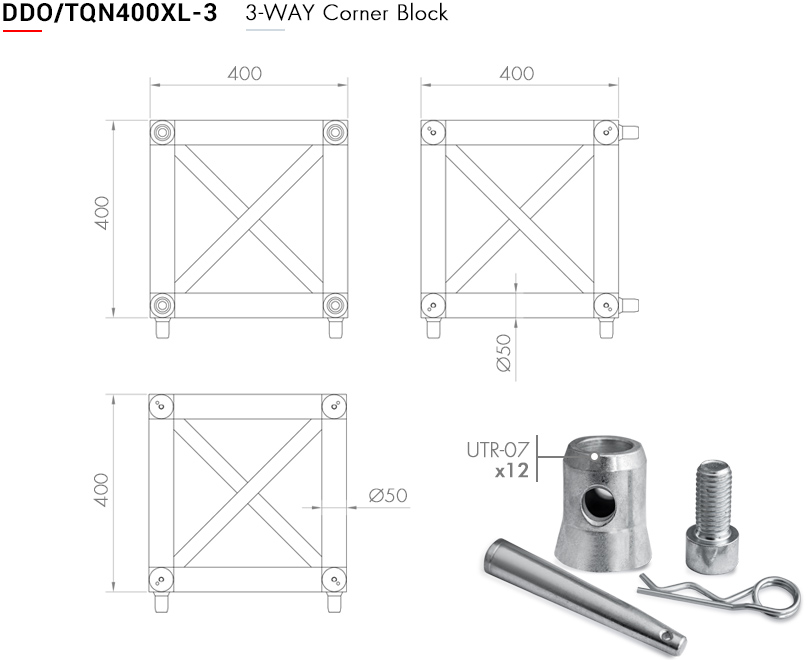

- DDO/TQN400XL-3: Three-way aluminium box corner (equipped with 12 connectors ref. UTR-07) Net Weight: 10.12 kg
- DDO/TQN400XL-4: Four-way aluminium box corner (equipped with 16 connectors ref. UTR-07) Net Weight: 10.76 kg
- DDO/TQN400XL-5: Five-way aluminium box corner (equipped with 20 connectors ref. UTR-07) Net Weight: 11.3 kg

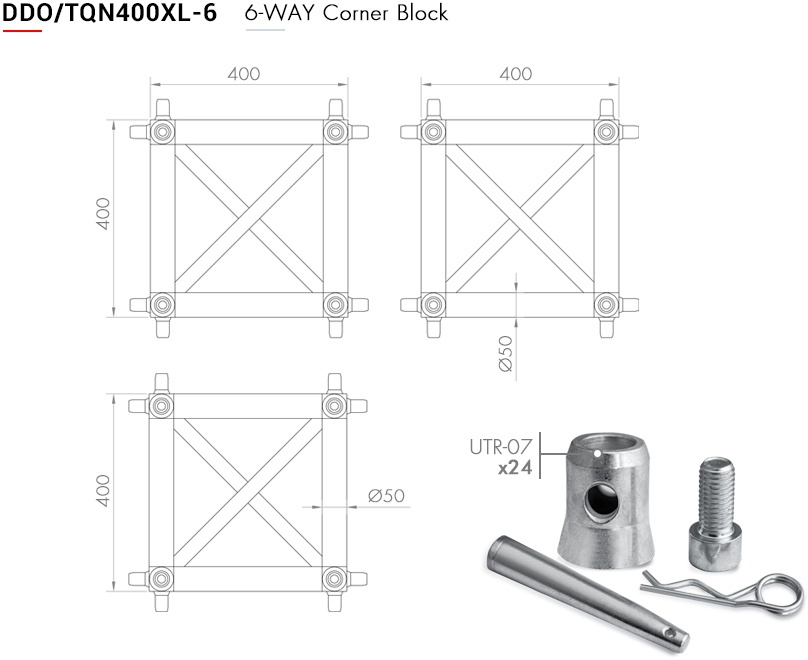

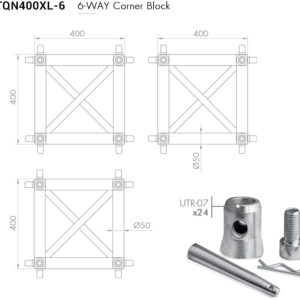

- DDO/TQN400XL-6: Six-way aluminium box corner (equipped with 24 connectors ref. UTR-07) Net Weight: 11.84 kg
DDO/TQN400XL box corner has different references depending on the number of ways/sides required:
- DDO/TQN400XL-2: Two-way aluminium box corner (equipped with 8 connectors ref. UTR-07) Net Weight: 9.58 kg
- DDO/TQN400XL-3: Three-way aluminium box corner (equipped with 12 connectors ref. UTR-07) Net Weight: 10.12 kg
- DDO/TQN400XL-4: Four-way aluminium box corner (equipped with 16 connectors ref. UTR-07) Net Weight: 10.76 kg
- DDO/TQN400XL-5: Five-way aluminium box corner (equipped with 20 connectors ref. UTR-07) Net Weight: 11.3 kg
- DDO/TQN400XL-6: Six-way aluminium box corner (equipped with 24 connectors ref. UTR-07) Net Weight: 11.84 kg
DDO/TQN400XL six-sided box corners are tested according to the following standards:
- DIN EN 1990 (EUROCODE 0)
- DIN EN 1991-1-1 (EUROCODE 1)
- DIN EN 1993-1-1 (EUROCODE 3)
- DIN EN 1999-1-1 (EUROCODE 9)
- DIN EN 1090-1
- DIN EN 1090-2
- DIN EN 1090-3
