    Connector for truss base-plate

    Ref. UTR-06

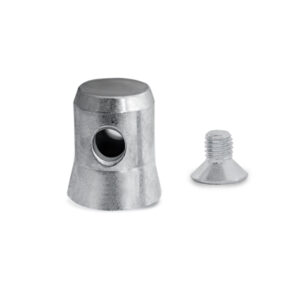

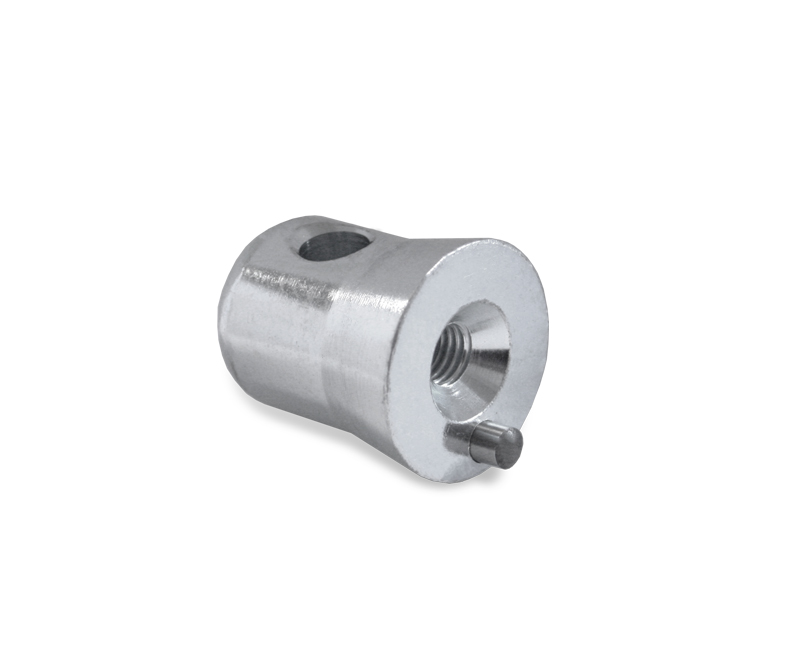

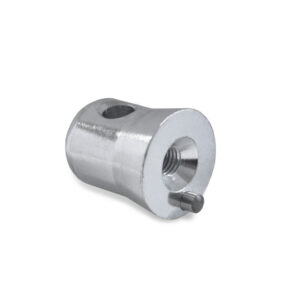

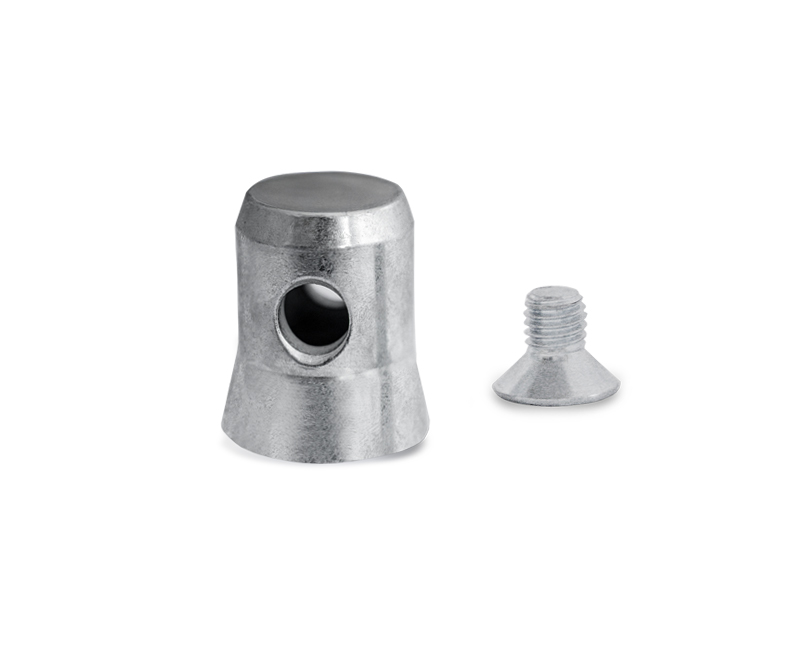

    Connector to attach trusses ref. TQN290 y TQN400XL to the base-plates.  The connecter Ref. UTR-06 is composed of:

    ▪  1 x Connector, ref. RC-103
    ▪  1 x countersunk Allen-headed zinc-plated bolt: M10x16 mm

    The Ref. UTR-06 for the base truss provides quick and solid assembly of the truss to the base-plate.

    Every GUIL base-plate is supplied with 4 UTR-06 connectors for complete assembly.

     SPECIFICATIONSUTR-06
    Material:Steel
    Finish:Zinc-plated
    Net weight:0.19 kg

    Made for use with square truss: Ref. TQN290 y TQN400XL
