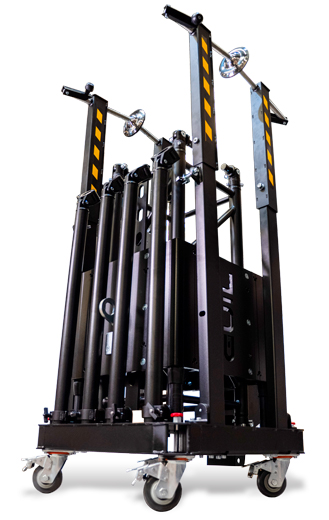

Ground Support tower. Max. height: 8.39 m / Max Load: 500 kg

Ref. TMD-600/8

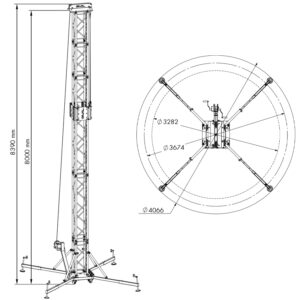

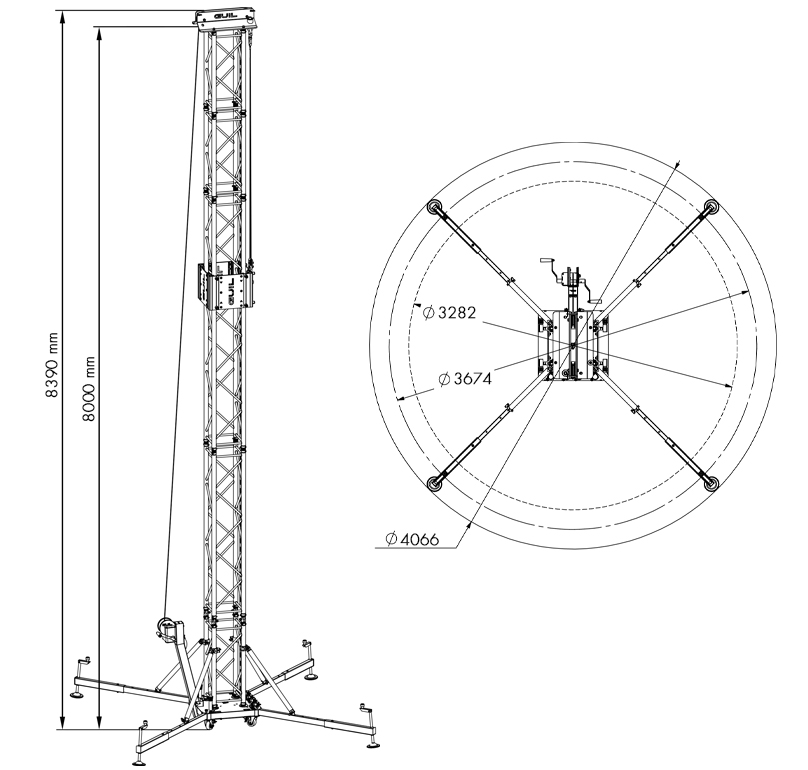

Ground Support tower designed to lift up to 500 kg to a maximum of 8,39 metres. It is composed of reinforced square truss sections (400 x 400 x 3 mm).

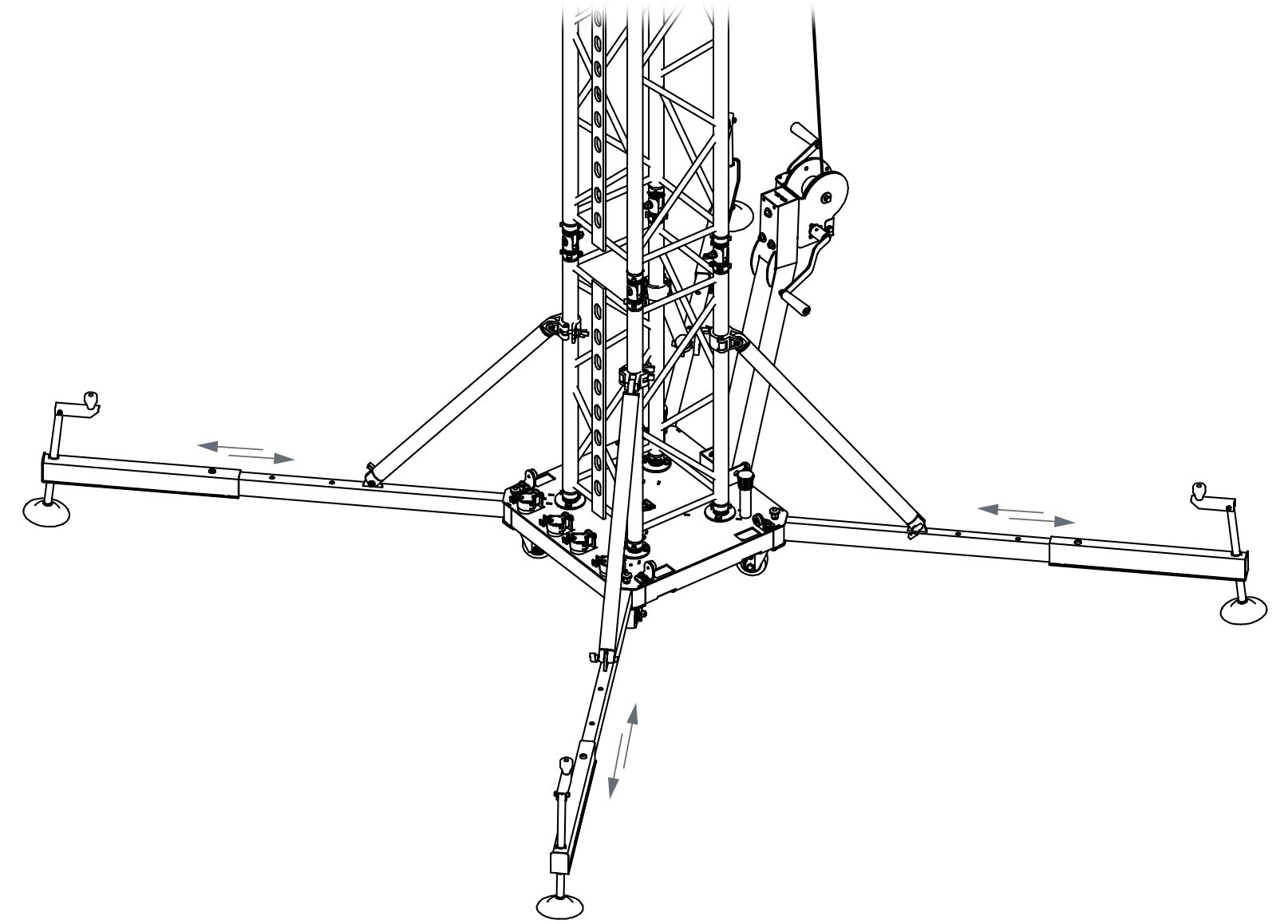

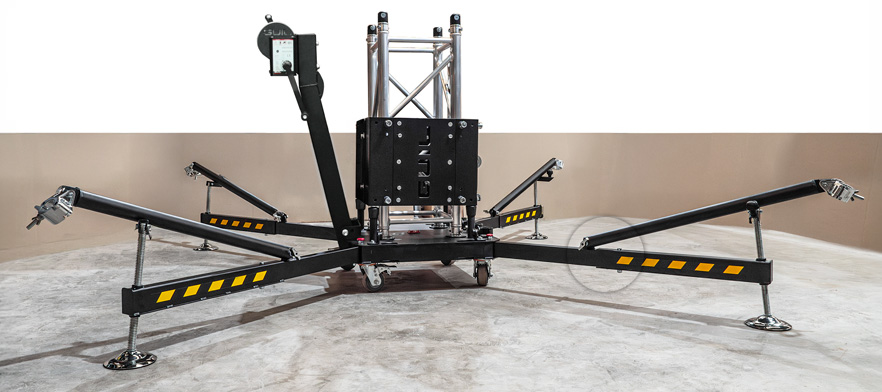

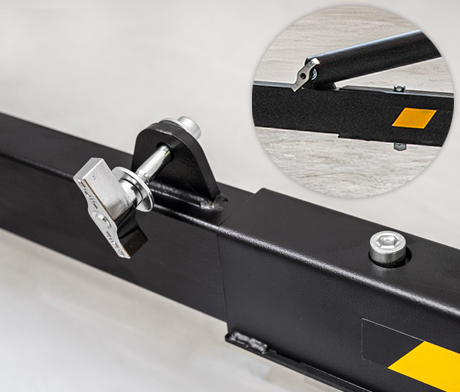

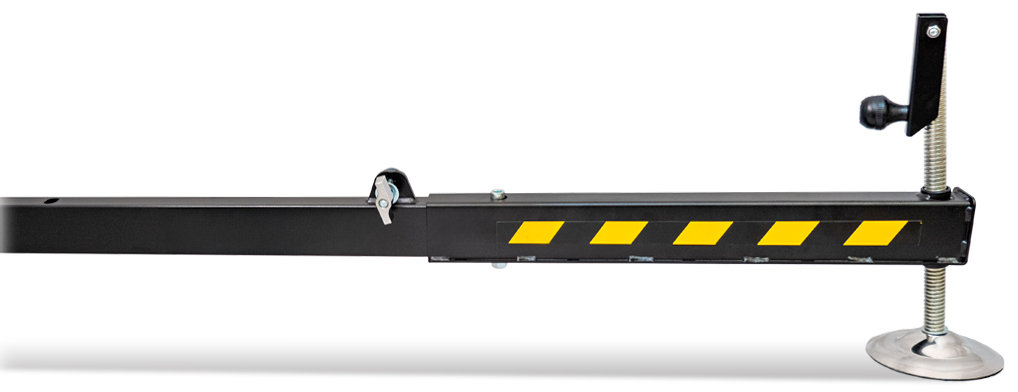

Includes stabilisers & double-handed winch. Telescopic legs.



TECHNICAL SPECIFICATIONS



 SPECIFICATIONSTMD-600/8
Maximum Height:8.39 m
Maximum Load:500 kg

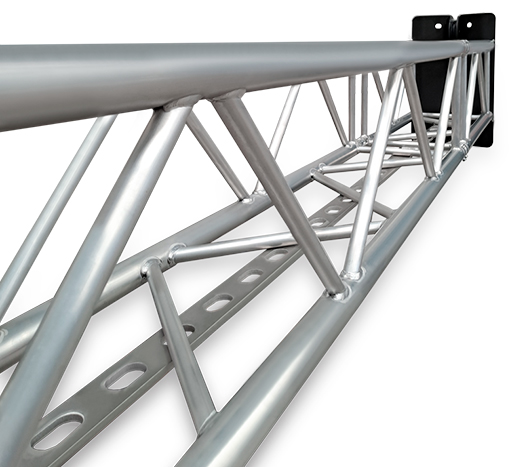

Mast Sections – Square Truss:400 x 400 x 3 mm (reinforced truss sections)
Handed winch.:BULL500
Material:Aluminium and Steel
Use:For outdoor and indoor use.
Net weight:255 kg
Colour:Black and Aluminium

Double-handed winch
