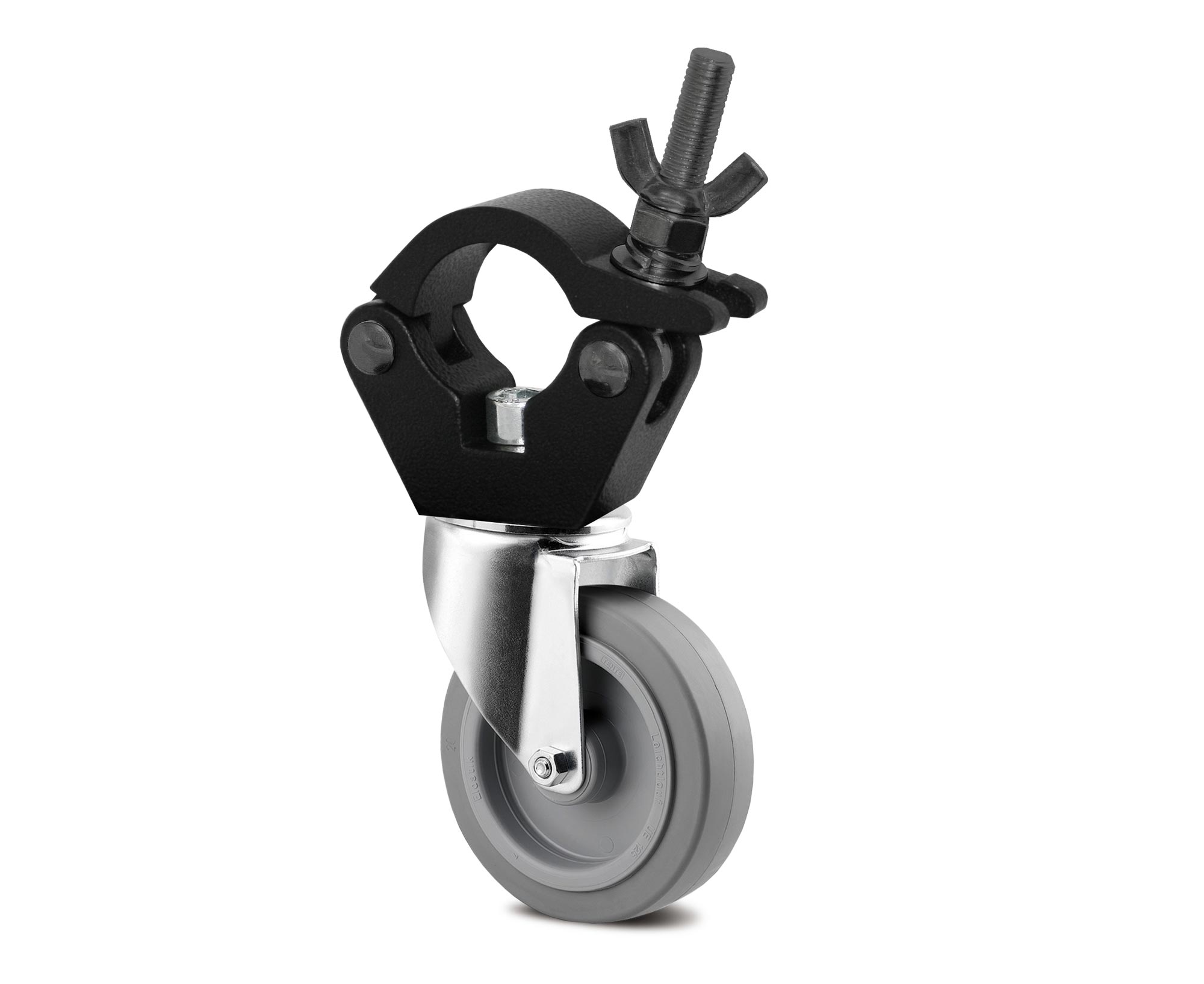

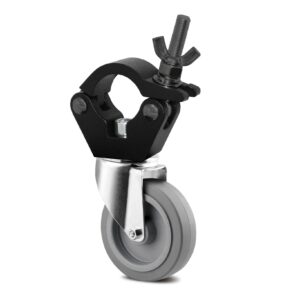

Heavy-duty aluminium half coupler provided with a Ø 100 mm swivelling wheel. Designed to be used on trusses / tubes with an external diameter from 45 mm to 52 mm. It has a double blocking system with nut and wing nut which makes it the right coupler to the most demanding set-ups like in theatres, live shows, events etc. where the most stringent safety requirements must be met.
Our ABZ-46/N coupler is essential for transporting truss structures, screen frames made from tubes and in general anything that has a Ø 45 to 52 mm tube that we want to move on wheels. It combines strength and durability with a high level of safety.
Multi-purpose coupler that is used in various fields: entertainment industry, theatre, construction, etc. It combines strength and durability with a high level of safety thanks to its 50 mm thickness.
Substituting the wheel for a bolt and wing nut or an eye nut or a second clamp (converting it into a swivel coupler) it can be used for other functions.

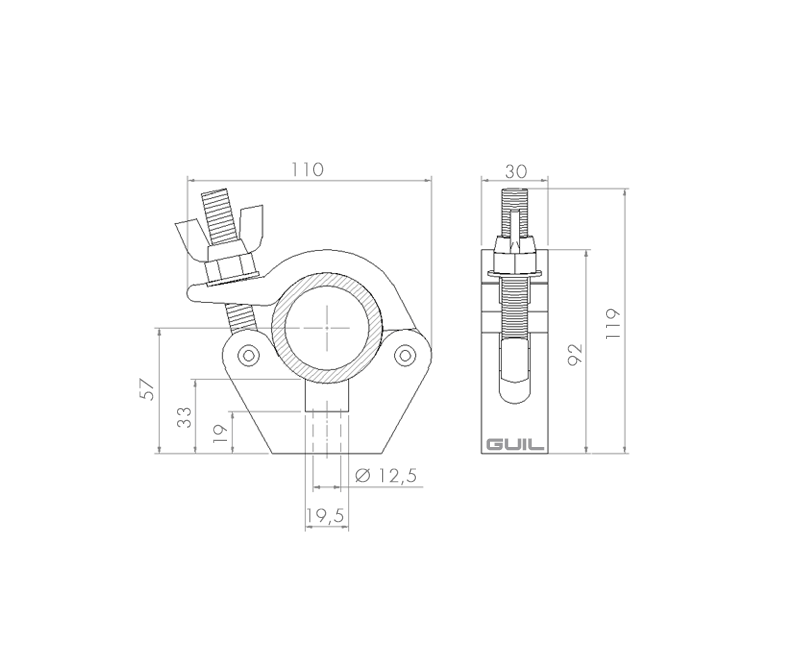

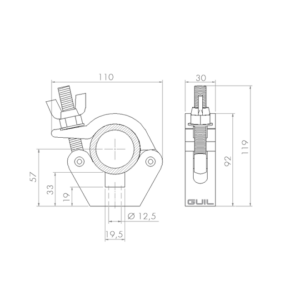

| SPECIFICATIONS | ABZ-46/N |
| Maximum Load: | 100 kg |
| For tube diameters: | 45 to 52 mm |
| Width: | 30 mm |
| Fixings: | 245 x 150 x 80 mm |
| Measures: | Ø 100 mm swivelling wheel |
| Material: | Aluminium |
| Colour: | Aluminium |
| Net Weight: | 1,43 kg |
Made in aluminium. Swivelling wheel (Ø 100 mm)
