Hand winch with automatic brake
Auto-brake winch with two handles. It offers an easy and safe way to raise and lower all kinds of heavy loads.
The BULL200D manual winch has been specially designed for lifting loads. It meets the requirements of EC standard EN 13157, the CE Directive and the Machinery Directive.
This multiple application winch has an automatic braking system, it prevents the load from moving and blocks it at the desired height. Thanks to its self-activating automatic brake when the handles are released, the braking system holds the load in position preventing unwanted movement.
| SPECIFICATIONS | BULL200D |
| Maximum Lifting Capacity: | First layer: 550 Kg (1213 lb) / Last layer: 275 Kg (606 lb) |
| Maximum Pulling Capacity: | 550 Kg (1213 lb) |
| Crank handles: | 2 |
| Drum Capacity: | 23 m (with Ø 5 mm cable) |
| Net Weight: | 4 kg |
| Regulations: | EN 13157 & 2006/42/CE |
Lifting capacity: 275 kg (606 lb). Pulling capacity: 550 kg (1213 lb)
- Provided with two handles, ergonomically designed for easy handling.
- Its two crank handles are removable for easy winch storage; preventing damages during its transportation.
- Manufactured in high-strength steel.
- Treatment for outdoor use with a double anti-corrosion treatment for greater resistance.
- Designed to be used both indoors and outdoors (industrial and domestic use).
- The whole winch mechanism is completely covered to prevent any harm to the user.
- Winch clutch system prevents the handles from becoming stiff.

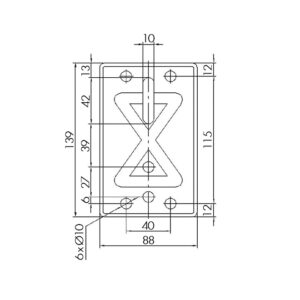

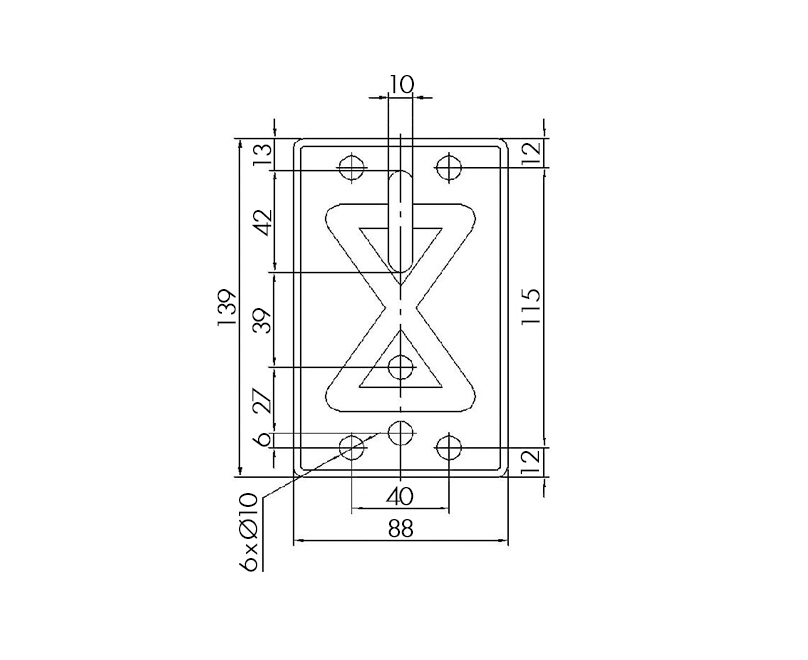

- It can be mounted both vertically or horizontally. Quick mounting system.
- Lightweight and compact design for easy handling in multiple applications.
