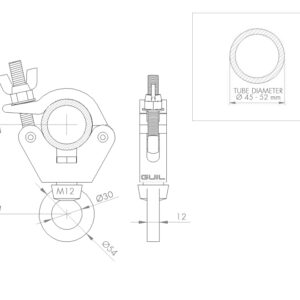

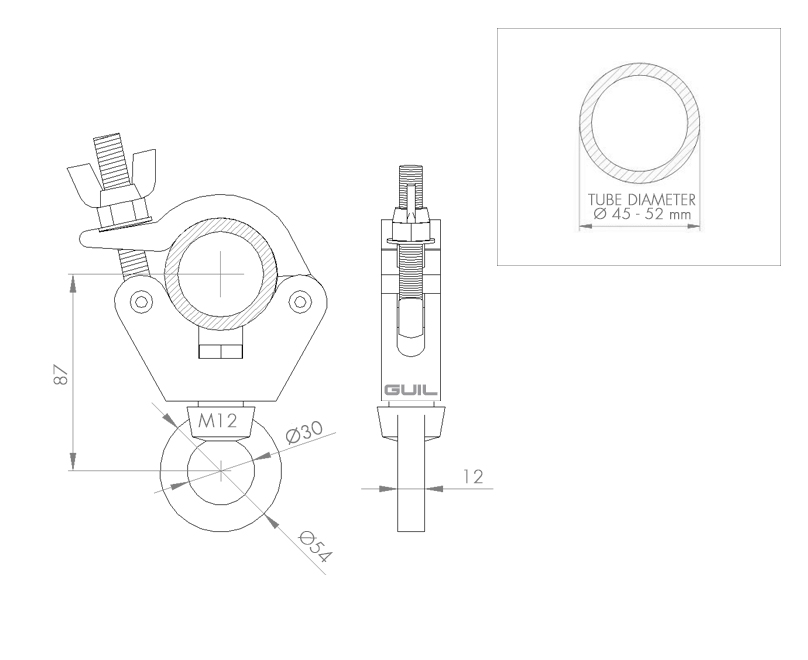

Aluminium hanging coupler with eye nut. For use on trusses / tubes with an external diameter from 45 mm to 52 mm. Double blocking system with nut and wing nut which makes it the right coupler for the most demanding set-ups, such as events, theatres, live shows, etc. where the most stringent safety requirements must be met.
Our hanging clamp ABZ-34/N comes complete with an eye nut, which makes it perfect for hanging chains, safety wire, slings, etc, on a truss / tube to support lighting, audio, video, etc.
Being thinner than the ABZ-04 makes it more appropriate for larger installations, where the space required for the installation of the clamp is limited.
This practical hanging clamp is used in various fields: entertainment industry, theatre, construction, etc. It combines strength and durability with a high level of safety.
Substituting the eye nut for a wing nut or a second clamp (converting it into a swivel coupler), or any other fixture, it can be used for other functions.
| SPECIFICATIONS | ABZ-34/N |
| Maximum Load: | 300 kg |
| For tube diameters: | 45 to 52 mm |
| Width: | 30 mm |
| Fixings: | M12 Eye nut |
| Material: | Aluminium |
| Colour: | Black |
| Net Weight: | 0.62 kg |
Made in aluminium – Black colour. Includes eye nut
