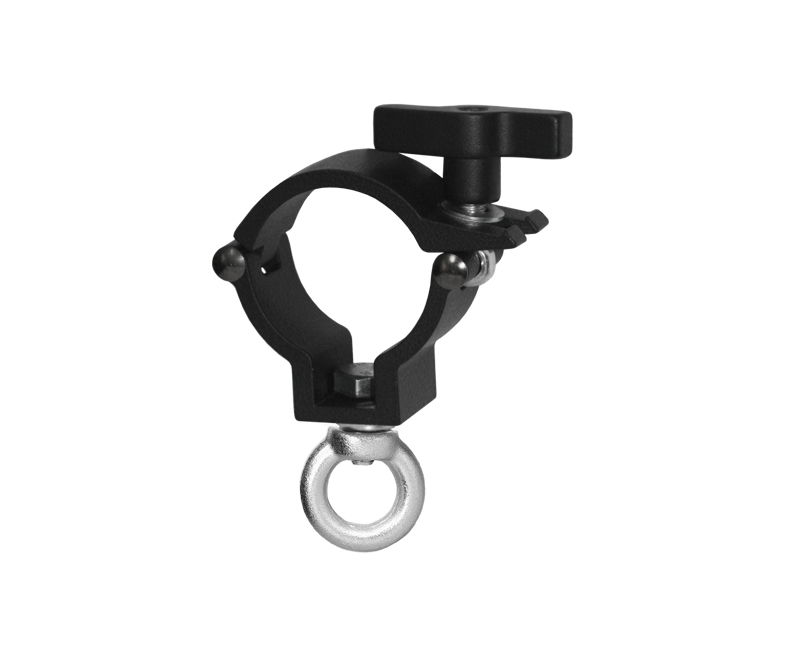

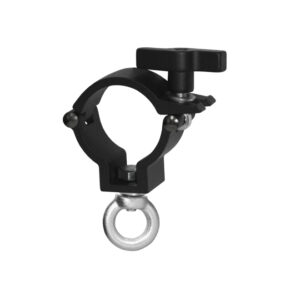

Hanging coupler for Ø 48-51 mm tubes. WLL: 100 kg
Light-weight hanging aluminium clamp coupler with eye nut. For used on trusses / tubes with an external diameter from 48 mm to 51 mm.
Our hanging clamp coupler ref. ABZ-58/N comes complete with an eye bolt, which makes it perfect for hanging safety wire, slings, chains, etc, on a truss / tube to support lighting, audio, video, etc.
This practical multi-purpose coupler is used in numerous fields: entertainment industry, theatre, construction, etc. It combines strength and durability with a high level of safety, which makes it perfect for jobs that require a reliable light-weight coupler.
It can be used for other functions, just substituting the eye nut for a bolt and wing nut or a second clamp (converting it into a swivel coupler).

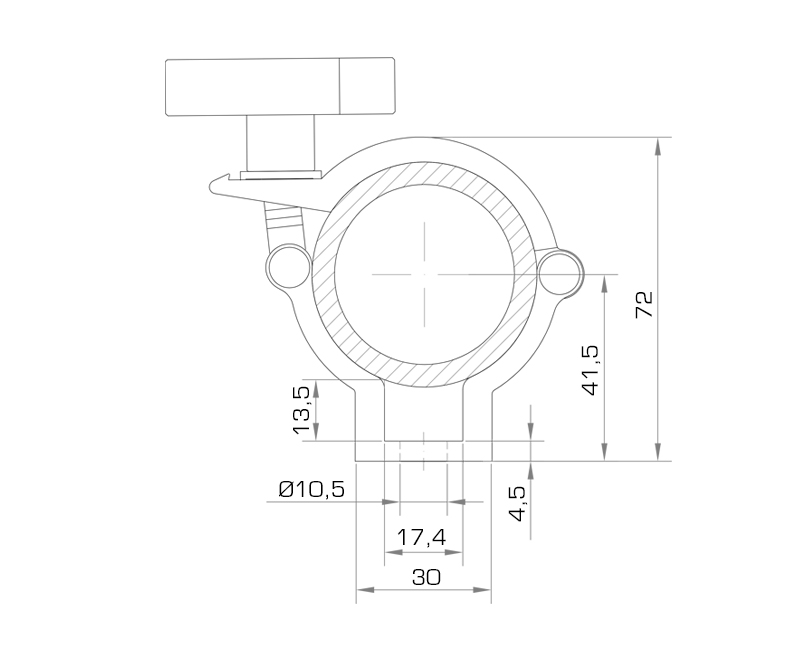

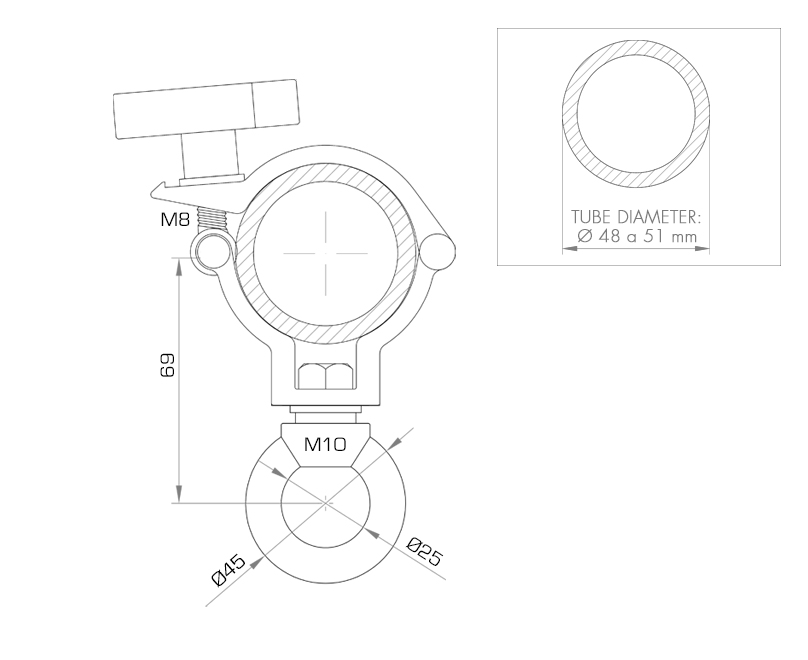

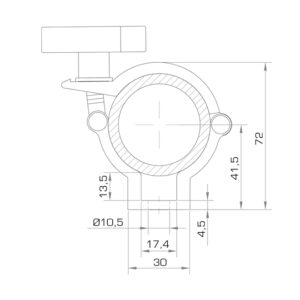

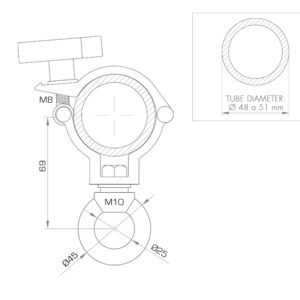

| SPECIFICATIONS | ABZ-58/N |
| Maximum Load: | 100 kg |
| For tube diameters: | 48 to 51 mm |
| Width: | 30 mm |
| Fixings: | M10 Eye nut |
| Material: | Aluminium |
| Colour: | Black |
| Net Weight: | 0,23 kg |
Made in aluminium. Black Finish. Includes eye nut
