Lifting bracket for truss suspension
Heavy-duty lifting bracket to ensure reliable truss suspension and elevation by means of motor hoist, chain hoist, hand winch, etc.

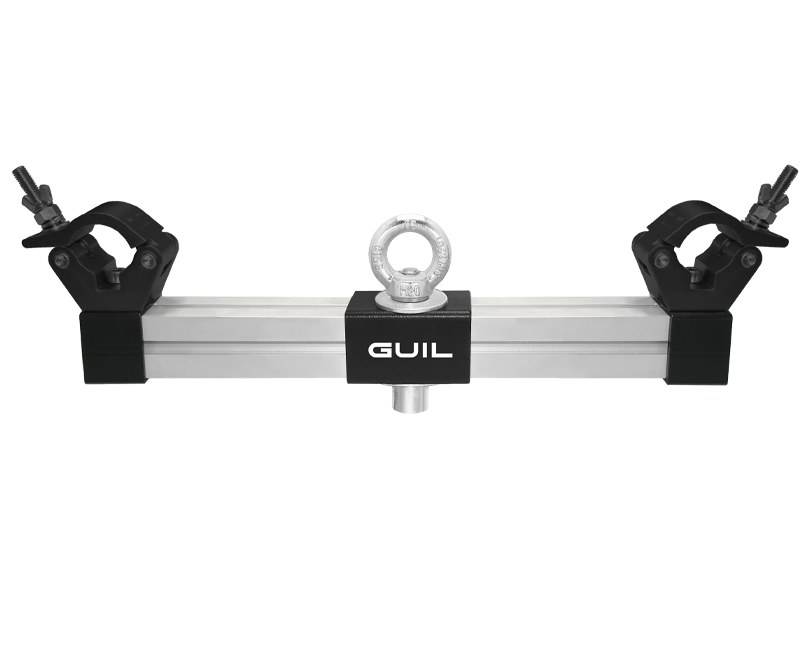

The TS-AD1 steel and aluminium lifting bracket comes with two detachable aluminium couplers ref. ABZ-24 (for truss with ø 45 to 52 mm tubes) and a removable M20 eye nut, to attach and subsequently suspend and lift the truss.

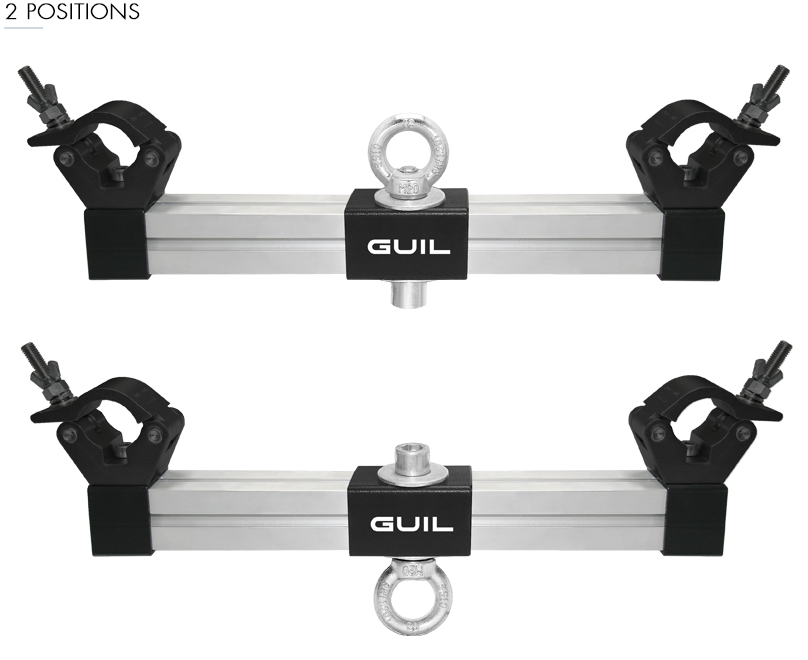

The special reversible bracket design allows two different truss attachment positions making them a perfect solution for permanent or semi-permanent installations.

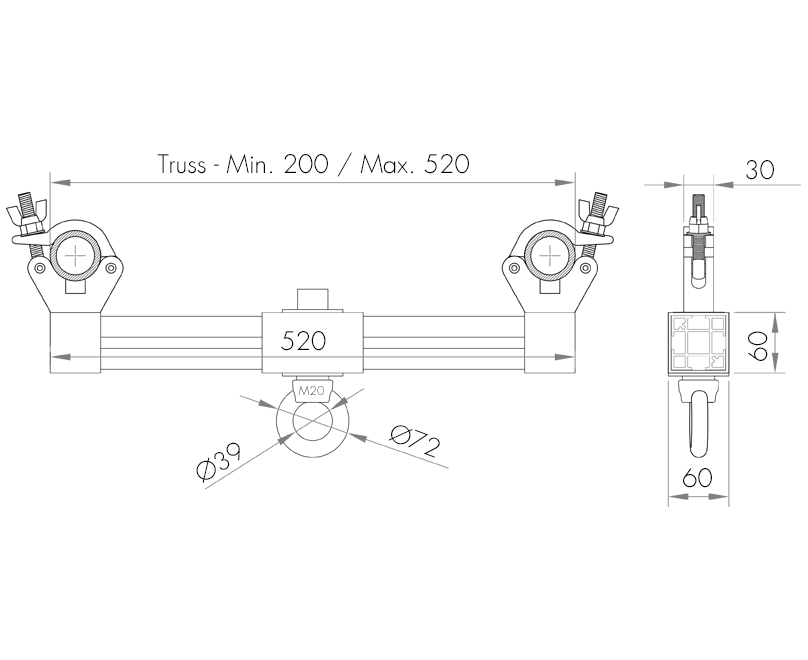

Thanks to its special adjustable design the TS-AD1 bracket can be used with trusses of 20 cm to 52 cm.
| SPECIFICATIONS | TS-AD1 |
| Maximum Load: | 1000 kg |
| Adjustable: | Yes |
| Fixings: | M20 Eye nut |
| For tube diameters: | 45 to 52 mm |
| Material: | Aluminium |
| For truss sizes: | From 20 cm to 52 cm |
| Net Weight: | 3,70 kg |
For 20 to 52 cm truss
