Selflock trigger clamp for Ø 46-52 mm tubes. WLL: 250 kg

Ref. ABZ-50/N

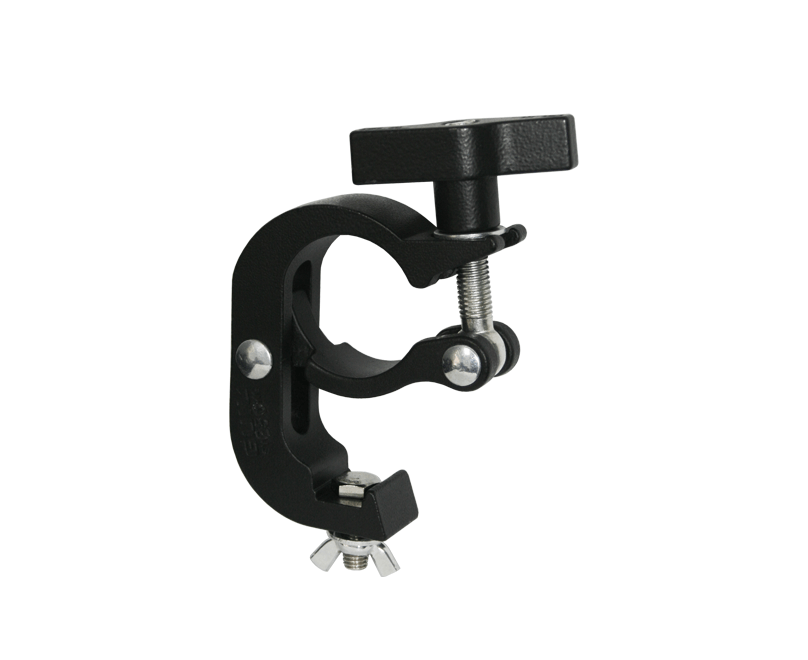

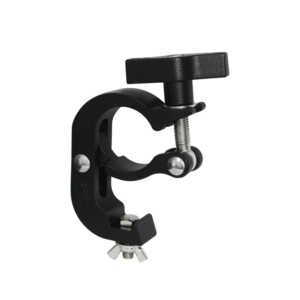

Aluminium selflock trigger clamp with wing nut and bolt and ergonomic knob. Designed to be used on trusses / tubes with an external diameter from 46 mm to 52 mm.

The large ergonomic securing knob makes the installation quicker, as thanks to this larger knob it is easier to tighten.

Substituting the nut and bolt for any other fixture it can be used for other functions. Our quick trigger clamp ref. ABZ-50/N, combines strength and durability with a high level of safety.

SPECIFICATIONS	ABZ-50/N
Maximum Load:	250 kg
Measures:	175 x 103 x 30 mm
For tube diameters:	46 to 52 mm
Width:	30 mm
Fixings:	M10 x 30 with wing nut and washer
Material:	Aluminium
Colour:	Black
Net Weight:	0,48 kg
