Telescopic lifting towers “Top Loading”. Folding base
Compact telescopic wind-up tower specially designed for easy transportation when folded. It has been certified to lift loads of up to 125 kg (276 lb) to a maximum height of 3.50 metres (11.50 ft).
Its user friendly and compact design, with folding and adjustable base, makes the ELC-720 stand ideal for any kind of temporary event, both outdoors and indoors.
| SPECIFICATIONS | ELC-720 |
| Maximum Height | 3.50 m I 11.50 ft |
| Maximum Load | 125 kg I 276 lb |
| Safety System | ASB System (Automatic Safety Blocking System) |
| Brake Winch | AL-KO 450 |

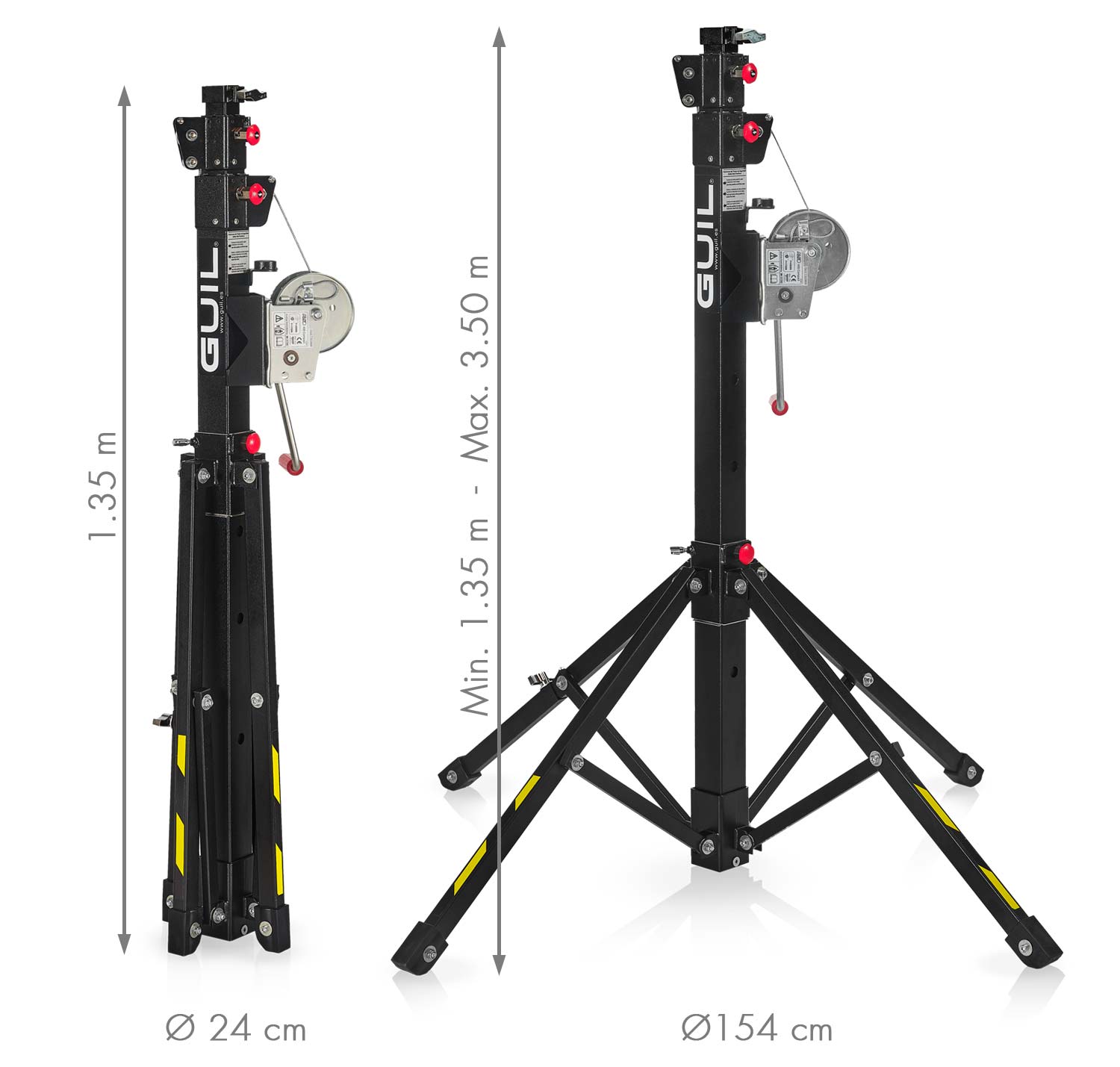

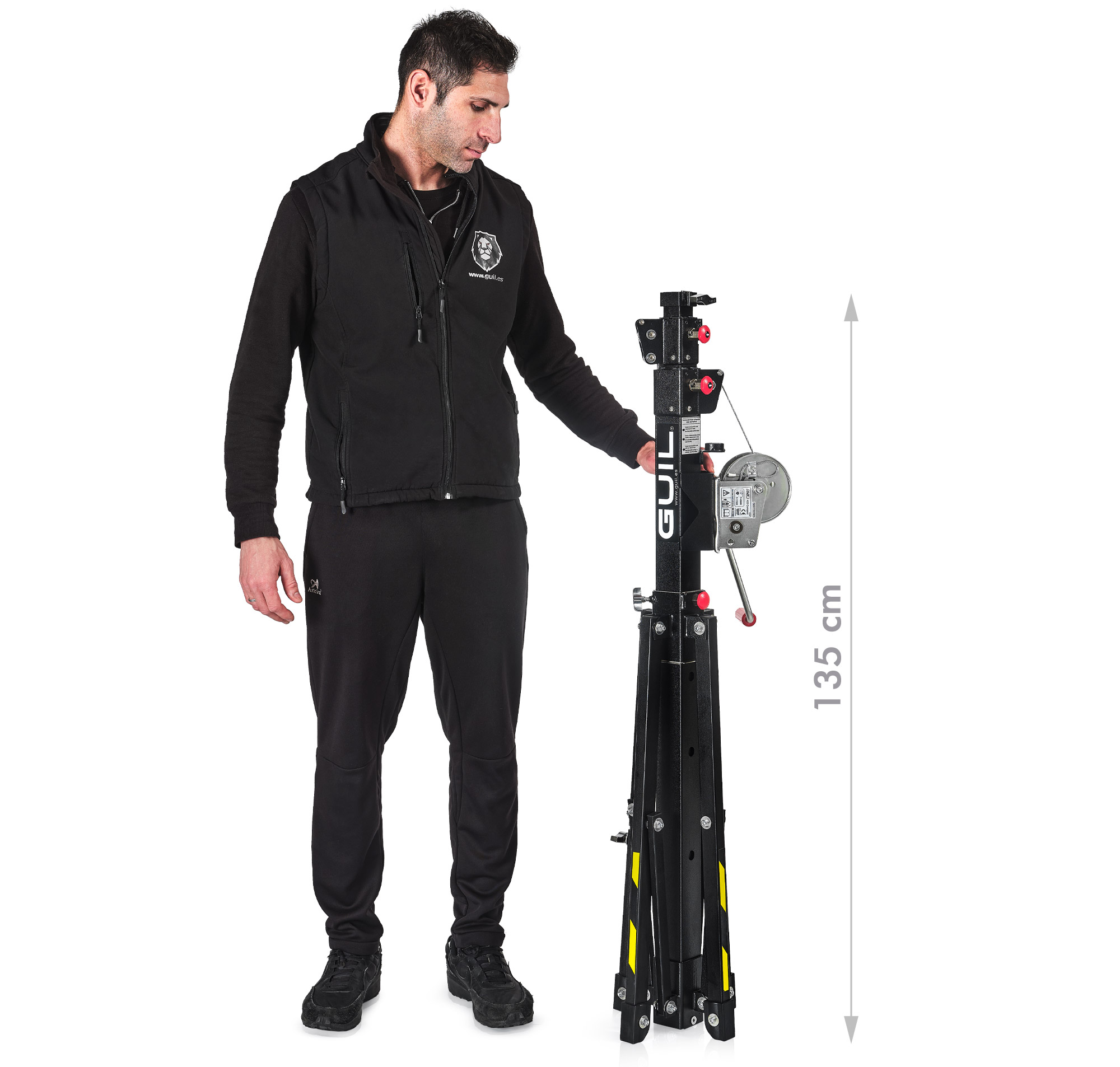

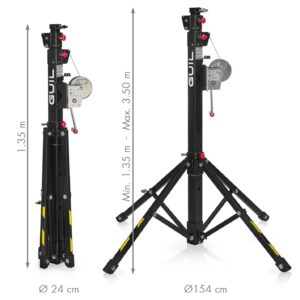

| Folded Dimensions | Height: 1.35 m I 4.43 ft – Base: Ø 25 cm I 0.82 ft |
| Working Base Span | Ø 158 cm |
| Material | Steel |
| Complies with Standards | DGUV 17 & 18, DGUV Rule 115-002 (Formerly BGV-C1) |
| DIN EN 17206 (Replaces DIN 56950-1), 2006/42/CE | |
| Net Weight | 23.5 kg I 51.81 lb |
| Adaptors | Ø 35 mm I Ø 0.11 ft |
Maximum height: 3.50 m (11.50 ft) / maximum load: 125 kg (276 lb)
ELC-720 is equipped with two safety systems which guarantee maximum reliability and resistance:
1.- It is equipped with a hand winch AL-KO 450 (450 Kg) with automatic braking system. Its auto-block system ensures the load remains in position whenever the handle is released.
2.- ASB System (Automatic Safety Blocking System): Zip/Trigger safety system with holes by means of which in the extreme case of cable breakage, the safety trigger would automatically slide into one of these holes, blocking the load and stopping it from falling (preventing displacement).
ELC-720 Lift complies with the lightweight, sturdiness and manoeuvrability requirements needed to lift heavy loads, guaranteeing maximum safety and resistance.
ELC-720 tower complies with the highest quality standards and safety norms:
- DGUV Regulation 17 & 18
- DGUV Rule 115-002
- DIN 56950-1
- 2006/42/CE
IMPORTANT: It is not to be used as a hoist for lifting, supporting or transporting people.
Compact base with four legs (umbrella style) fitted with rubber feet, to prevent sliding and guarantee a perfect adjustment to the floor surface.
Its special design with no loose parts, offers technicians a fast and easy lift set-up; no tools required.
Lifting Tower consisting of three telescopic sections made of steel finished in a textured, black powder coating (Epoxy) that has special anti-scratch properties. This feature, together with the fact that all its components are made with rustproof material, makes the lift suitable for use outdoors, guaranteeing maximum corrosion resistance. Note: For maximum stability, the last section is fitted with a reinforced ending.
These sturdy sections are raised by means of a Ø 4 mm non-rotating steel wire rope with an independent galvanized steel core, Composition: 7×19+0, specially manufactured for lifting heavy loads (DIN 3060), which is guided by self-lubricating pulleys with bearings.
These mast sections are blocked by means of safety bolts; these safety bolts are an essential element while using this stand to block & unblock the mast sections at the desired height.
All pulleys and the roller-cable guide have protective metal plates, which have two main functions:
– To prevent damage during the lift handling.
– To stop the wire from coming off the pulleys.
It has a compact and lightweight design for easy handling, transportation and storage and can fit in small vehicles for maximum manoeuvrability. This means that one technician can transport and use the ELC-720 lift with ease, saving time and increasing productivity.
GUIL – Technical Specifications ELC-720
GUIL ELC-720 Lifting Towers Certificate
ADAPTORS

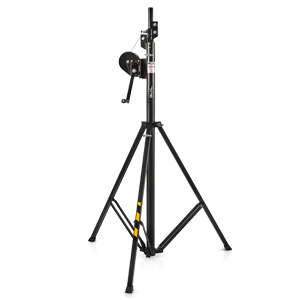

RELATED PRODUCTS
