Telescopic lifting towers “Top Loading”. Folding base
Compact telescopic lift for spotlights, specially designed for easy transportation when folded. It has been certified to lift loads of up to 100 kg to a maximum height of 4.00 metres and has a Ø 35 mm top shaft.
Its user friendly and compact design, with a folding and adjustable base, make the ELC-710 Lift ideal for any kind of temporary event, both outdoors and indoors.
| SPECIFICATIONS | ELC-710 |
| Maximum Height | 4.00 m I 13.12 ft |
| Maximum Load | 100 kg I 221 lb |
| Safety System | ASB System-2 (Automatic Safety Blocking System) |
| Brake Winch | 450 kg |

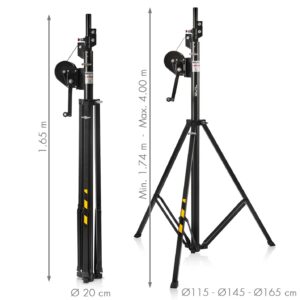

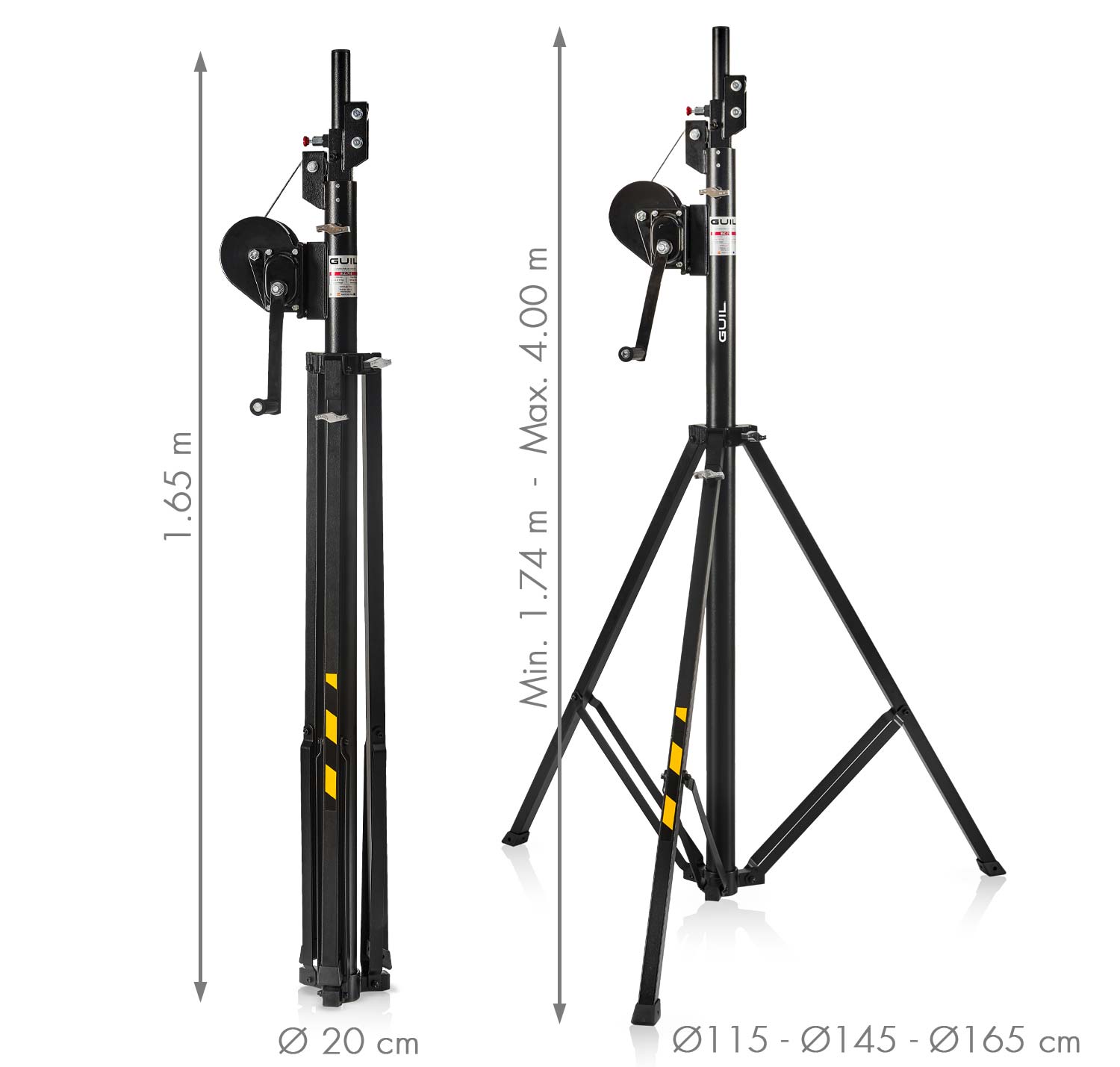

| Height stowed | 1,65 m I 5.41 ft |
| Material | Steel |
| Complies with Standards | DGUV 17 & 18, DGUV Rule 115-002(Formerly BGV-C1) |
| DIN EN 17206 (Replaces DIN 56950-1), 2006/42/CE | |
| Net Weight | 20.5 kg I 45.19 lb |
| Adaptors | Ø 35 mm I Ø 0.11 ft |
Maximum Height: 4.00 m (13.10 ft) / Maximum Load: 100 kg (220 lb)
ELC-710 is equipped with two safety systems which guarantee maximum reliability and strength:
1.- It is equipped with a hand winch (450 Kg) with automatic braking system. Its auto-block system ensures the load remains in position whenever the handle is released.
2.- ASB System-2 :Automatic Safety Blocking System with locking pin.
The ELC-710 wind-up stand complies with current European standards and safety norms: DGUV Regulation 17 & 18, DGUV Rule 115-002, DIN 56950-1 and 2006/42/CE.
ELC-710 Lift are made using the most advanced welding processes which guarantee the lightweight, sturdiness and manoeuvrability requirements needed to lift loads guaranteeing maximum safety and durability.
IMPORTANT: It is not to be used as a hoist for lifting, supporting or transporting people.

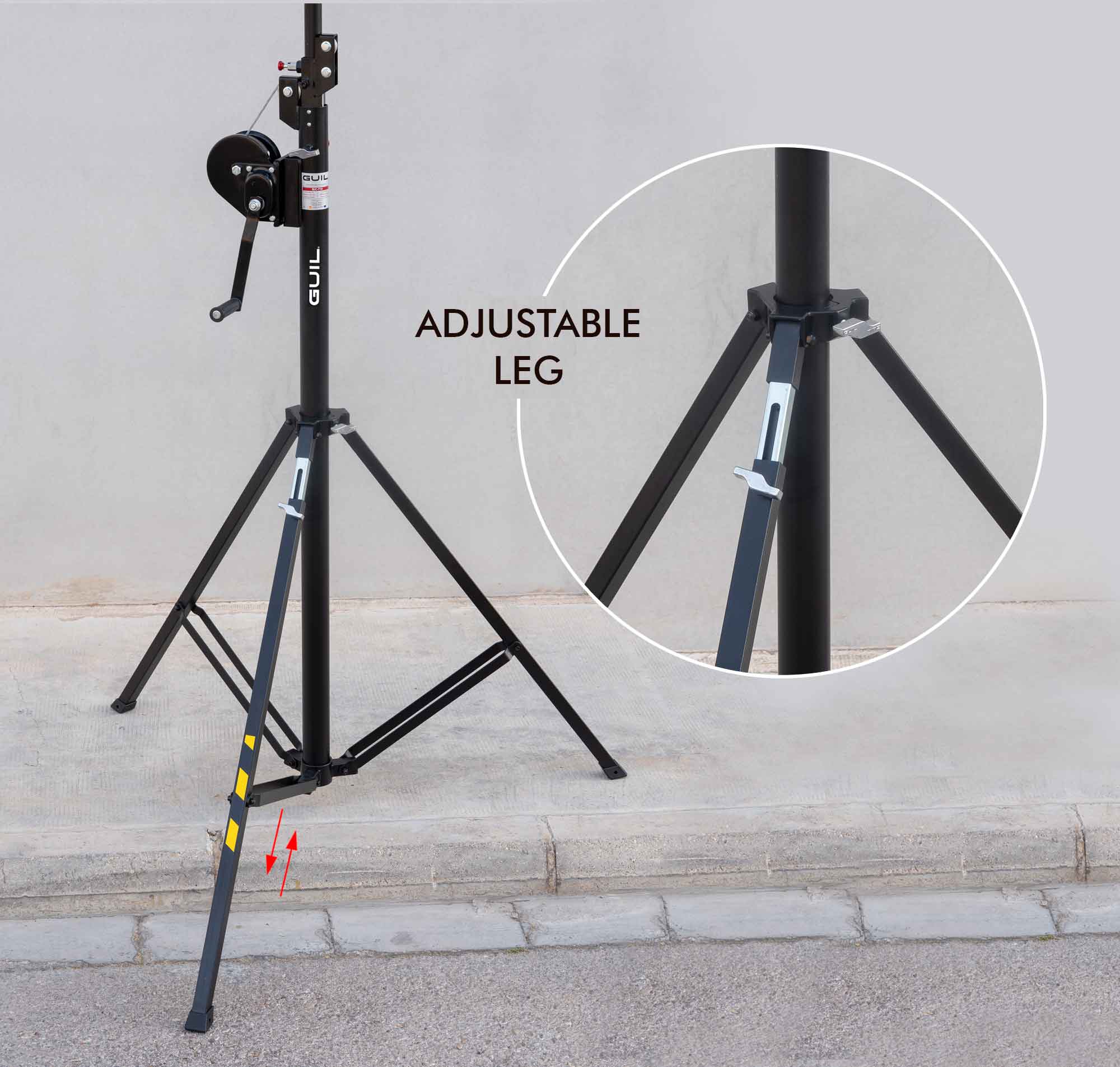

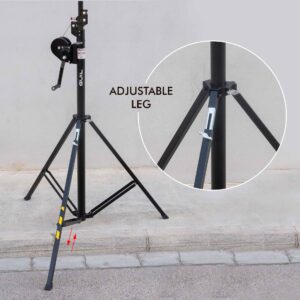

Compact base made in steel with three legs, one of them telescopic (umbrella style) and fitted with rubber feet, to prevent sliding and guarantee a perfect adjustment to the floor surface.
Its special design (there are no loose parts) offers technicians a fast and easy lift set-up (no tools required).
For a quick, safe and effortless lifting process, ELC-710 Lift is equipped with a hand winch (450 Kg) with automatic braking system, which stops the load at the desired height when the handle is released.
It has a compact and lightweight design for easy handling, transportation and storage and can fit in small vehicles for maximum manoeuvrability.
This means that one technician can transport and use the ELC-710 lift with ease, saving time and increasing productivity.
GUIL – Technical Specifications ELC-710
GUIL ELC-710 Lifting Towers Certificate
