50 x 50 mm Telescopic leg with adjustable leveller for TM440, TM440XL & TM300 decks.

Telescopic legs with an external square profile of 50 x 50 mm, manufactured with extruded aluminium adjustable using a metallic pressure knob and stainless steel leveller.

Its telescopic system allows different heights with just one set of legs (adjustable millimetre by millimetre) and ensures a perfectly levelled stage when setting up on uneven surfaces (ramps, stairs, outdoor terrain, etc.).

The leg height is blocked with a double locking system. Once the desired height is achieved the leg is secured with a metallic pressure knob, then, as an added safety measure legs are blocked with a nut and bolt, firmly locking the legs in position.

Finer height regulation is made using the adjustable stainless steel M12 leveller.

The legs come with a special rubber injected, non-marring, non-skid foot pad ensuring a perfect grip to any surface and prevents damage to delicate flooring (parquet, laminate, etc.).

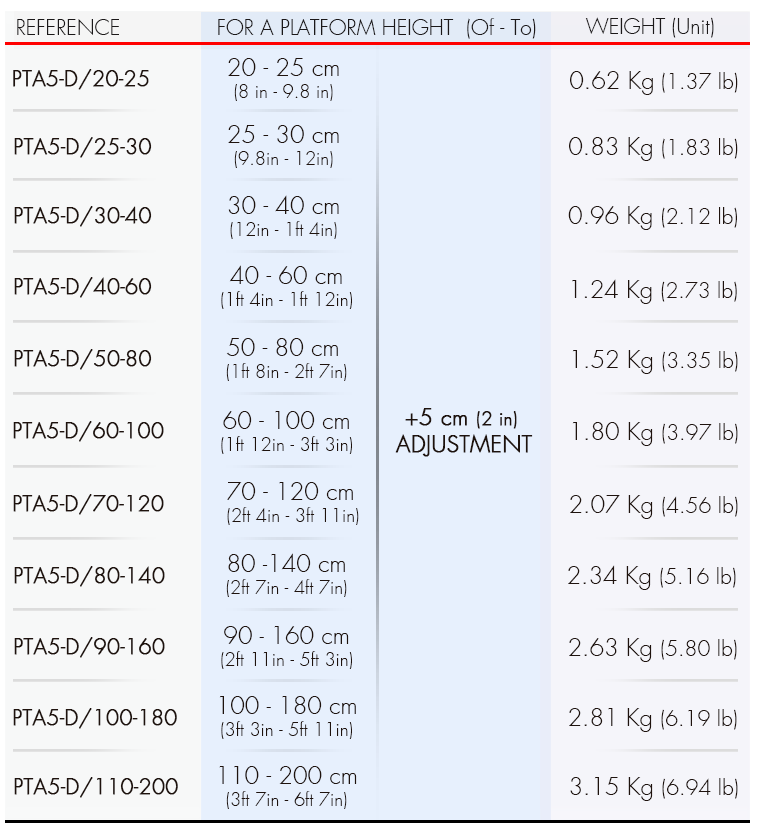

Note: When we specify the height of the legs, the height given is of the stage: from the floor to the top surface of the platform.

IMPORTANT:From Ref. PTA5-D/70-120 & higher:
For every 4 telescopic legs ordered 1 aluminium leg-to-leg clamp connector Ref. TMU-04 is included

Telescopic legs with special heights can be made to order; contact our sales department for more information.

Note: GUIL also manufactures other types of 50 x 50 mm legs; ask for the price of the legs that best fit your requirements:

– Fixed height legs (ref. PTA5-F)
– Fixed height legs with leveller (ref. PTA5-N)
– Telescopic legs (ref. PTA5-T)
– Telescopic legs with a locking pin and leveller (ref. PTA5-P)
