60 x 60 mm Telescopic leg with adjustable leveller for TM442XL decks

Telescopic legs with an external square profile of 60 x 60 mm, manufactured with extruded aluminium adjustable using a locking pin and stainless steel leveller that has a non-skid rubber foot pad (adjustable by 50 mm), ensuring a perfect fit to any surface.

Its telescopic system allows different heights with just one set of legs (adjustable millimetre by millimetre) and ensures a perfectly levelled stage when setting up on uneven surfaces (ramps, stairs, outdoor terrain, etc.)

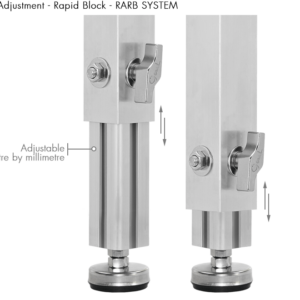

The leg height is blocked with a double locking system. Once the desired height is achieved the leg is secured with a metallic pressure knob, then, as an added safety measure legs are blocked with a nut and bolt, firmly locking the legs in position. Finer height regulation is made using the adjustable stainless steel M12 leveller.

The legs come with a special rubber injected, non-marring, non-skid foot pad ensuring a perfect grip to any surface and prevents damage to delicate flooring (parquet, laminate, etc.).

IMPORTANT:
From Ref. PTA6-D/70-120 & higher:For every 4 telescopic legs ordered 1 stainless steel leg-to-leg clamp connector Ref. TMU-05 is included

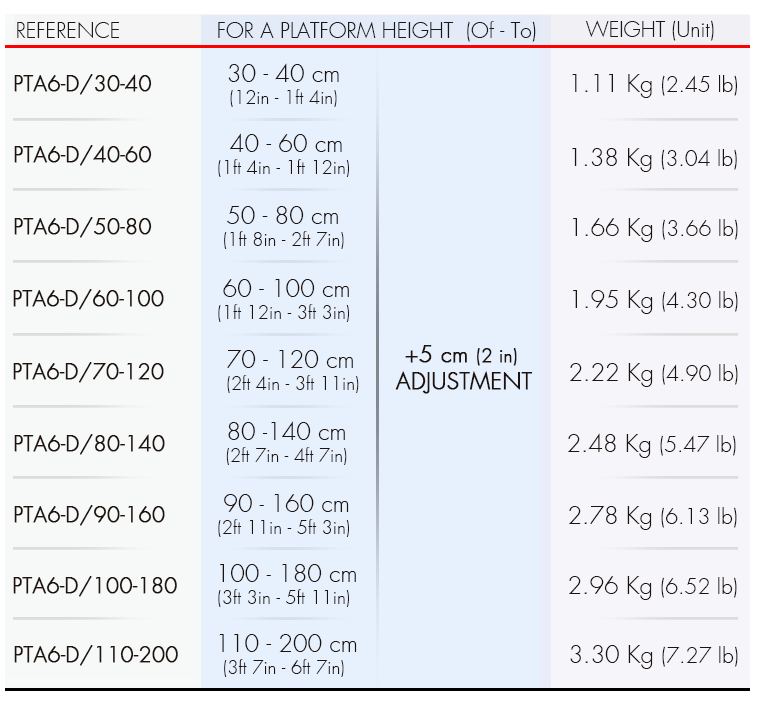

Telescopic legs with adjustable leveller have the following references:

Note: GUIL also manufactures other types of 60 x 60 mm legs; ask for the price of the legs that best fit your requirements:

– Fixed height legs (ref. PTA6-F)
– Fixed height legs with leveller (ref. PTA6-N)
– Telescopic legs (ref. PTA6-T)
– Telescopic legs with a locking pin and leveller (ref. PTA6-P)
