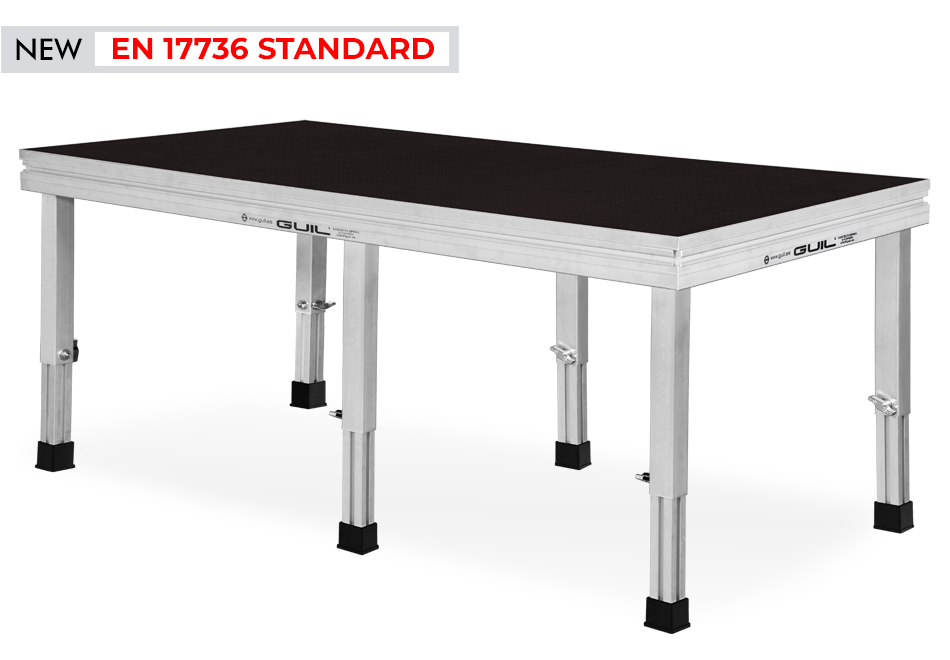

Professional aluminium platform with
Finnish birch panel of 21 mm

Ref. TM440XL

Heavy-duty modular deck with treatments for water and fire resistance and certified for a load capacity of 1400 kg/m2 (2x1m: 2800 kg Uniformly distributed).

The TM440XL deck is weather resistant and is made from a sturdy extruded aluminium frame and a non-slip, 21 mm thick, birch phenolic plywood panel with sealed edges. 2 metallic connectors included: 1 x TMU-01 & 1 x TMU-02.

 SPECIFICATIONSTM440XL
Maximum load capacity1400 kg/m2 (2×1 m: 2800 kg)
287 lb / sq. ft (6.56×3.28 ft: 6173 lb)
Panel > Finnish Birch Wood
> Thickness: 21 mm
> Phenolic plywood (WBP)
Certified according to the normDIN 15921 Entertainment technology
DGUV Regulation 17 & 18, DGUV Rule 115-002
EnvironmentFSC Certificate
PEFC Certificate
Reaction to fireClassification: B-s1
(According to norm: EN 13501-1)
Non-slip surface
R13 (According to norm: DIN 51130)
Material
Reinforced Aluminium, alloy EN AW 6063 80-T6
Connectors Included 1 x TMU-01 and 1 x TMU-02 (rustproof)
UseFor outdoor and indoor use.
Resistant to all weather conditions
Square legsDesigned to be used with 6 legs
Standard HeightsFrom 10 to 200 cm I 0.33 to 6.56 ft
(special heights made to order)
Standard Dimensions
2×1 m/1×1 m/2×0.5 m/1×0.5 m I 6.56×3.28 ft / 3.28×3.28 ft / 6.56×1.64 ft / 3.28×1.64 ft
Net weight
43 kg (2×1 m) I 95 lb (6.56×3.28 ft)
Stacking height
10 cm I 0.33 ft

certificados-FSC-y-PEFC

Staging platforms. Maximun Load:  1400 kg/m. Connectors included.

Modular platform in aluminium for stages, platforms, ramps, terracing, stands, etc.  Choice of 6 kinds of leg (fixed height, telescopic, with safety bolt . . .)  The modular platforms are available in different finishes, shapes, colours and special sizes.



VIDEOS
DOWNLOADS
  • GUARANTEED SAFETY
  • PANEL
  • FRAME
  • LEGS
  • CONNECTORS
  • SIZES
  • FINISHES

Our TM440XL platforms are certified for a load capacity of 1400 kg/m2 complying with the following safety norms:

  • DIN 15921:2015-09: Technical safety requirements and tests for aluminium platforms and frames for the Event Industry.
  • Directive 2001/95/CE: European Parliament product safety requirements from 3rd December 2001
  • DGUV Regulation 17: Stage installations and set-ups for the Event Industry
  • DGUV Rule 115-002: Stage installations and set-ups for the Event Industry

To meet these standards a 1.95 safety factory is required. The load and safety tests for the TM440XL GUIL platform were carried out with 5.460 kg.

All the certificates can be requested from our Engineering department on the following email: proyectos@guil.es

Tarima-de-aluminio-TM440XL-Certificado-Conformidad

TM440XL decks have a weather resistant 21 mm thick, best quality birch plywood panel. The panel has a non-slip surface finish with a wire mesh pattern printed thanks to a hot pressing process; each layer is coated with phenolic resin, making them resistant to bad weather conditions and humidity (WBP).

The panel is treated to be water and fire resistant, as well as being treated to protect it against commonly used chemicals; features that guarantee the highest resistance and durability for both indoor and outdoor use. To make this panel even longer lasting, all its edges have been sealed with black acrylic paint and silicone to prevent water infiltration.

The panel certificates can be requested from our Engineering department on the following email: proyectos@guil.es

Medida-21-mm

The plywood we use, made SOLELY from birch wood, is specially designed for those applications where high wear resistance and good non-slip properties are required. The composition and density of the plywood make our panels very compact and sturdy.

The birch panel used meets the requirements of the following standards:

– EN 13986:2004+A1:2015
– EN 314-2/clase 3
– DIN 53799
– DIN 5113

INTERIORES_Tarima-nieve

NOTE:  Our decks are designed for situations where short periods of rain or bad weather may appear and threaten your event. Rather than having to dismantle your stage immediately, the show can go on without fear of your deck surface warping or delaminating like other stage platforms. If the bad weather persists the platforms should be dried and stored away. The deck surface is weather resistant, NOT WATERPROOFED, but can withstand moisture on an intermittent basis. It was not designed to be used as a permanent installation where it is exposed to harsh elements all year round.

TM440XL Decks offer the best solution for any kind of event which requires a heavy-duty stage, with the possibility of multiple configurations for permanent (indoors) and temporary installations (ramps, concerts, theatres, podiums, catwalks, conservatoires, car exhibitions, etc.).

Thanks to their weather resistant birch panel and their reinforced aluminium framework, TM440XL decks are the suitable for both indoor and outdoor events. These features make GUIL decks the best option for those applications which require a high load capacity and a quick and easy set-up and disassembly.

Yes, we use plywood panels, but from forests that are responsibly managed.

That’s why the panels we use to make our platforms at GUIL have the FSC stamp (Forest Stewardship Council), which guarantees that the wood comes from sustainable forestry, giving the consumer the option to choose responsibly.

Our decks do not require under-panel reinforcing crossbars, as their components guarantee maximum safety (reinforced frame profile, BIRCH PLYWOOD (21 mm THICK) and fastening methods and components); exceeding the required load by the mentioned standards during the load tests carried out.

TM440XL Deck has a heavy-duty frame made with a 94 mm special profile of high strength extruded aluminium (EN AW 6063 80-T6 Alloy) with 4 internal reinforcing nerves.

Its multifunctional continuous rail design guarantees a quick and easy platform connection, allowing easy attachment of a wide range of accessories: access stairs, safety handrails, stage skirting, temporary grandstand seats etc.

The plywood panel is secured to the frame structure by means of strong adhesive foam, stainless steel screws and silicone, which prevent possible noises and vibrations, at the same time contributing to the overall weather resistance of the deck.

TRIPLE SECURING SYSTEM of the panel to the frame:

– Strong adhesive foam
Stainless steel screws
– Silicone

Tarima-de-aluminio-TM440-Perfil-94-mm

Each of its six leg sockets, made in high strength extruded aluminium, is secured to the profiles by means of 4 M8 bolts and self-locking hex nuts; guaranteeing maximum strength and durability.

The leg sockets come with a special reinforcing protective piece that has a double utility:

  • It prevents frame damage and noise when the deck is placed directly on the ground (without legs)
  • It prevents scratching of the deck surface when they are stacked one on top of the other for storage or transportation.

The legs are easily and quickly fastened into the sockets in the frame with a pressure wedge that is tightened by an ergonomic metal knob; guaranteeing a secure and strong connection.

Tarima-de-aluminio-Escuadra

Our TM440XL pallets do not need reinforcement bars, as we use a 21 mm thick birch wood panel and a reinforced aluminum frame that guarantee maximum safety.

Barras no necesarias

•Possibility of painting the legs in different colors. • On request, we can manufacture the 60 × 60 mm leg platform



PTA5-T: Telescopic legs, adjustable millimetre by millimetre.

– PTA5-D: Telescopic legs with leveller, adjustable millimetre by millimetre.

– PTA5-P: Telescopic legs with locking pin and leveller, adjustable millimetre by millimetre.

– PTA-R: Telescopic legs with a hinge to make an angle for ramps or set-ups on slopes.

– PTA5-F: Legs for a fixed platform height.

– PTA5-N: Fixed height legs with leveller.



Ref. PTA5-T   •   TELESCOPIC LEGS

Telescopic legs are manufactured with high strength extruded aluminium, have an external square profile of 50 x 50 mm and special non-skid rubber terminals secured to the leg with two screws.

Its telescopic design offers different heights with just one set of legs (adjustable millimetre by millimetre) and ensures a perfectly levelled stage when setting up on uneven surfaces (ramps, stairs, outdoor terrain, etc.) in a quick, easy and reliable way.

The legs have an external profile with four 4mm internal nerves and an internal profile with 9 internal nerve walls.

The leg height is blocked with a double locking system. Once the desired height is achieved the leg is secured with a metallic pressure knob, then, as an added safety measure legs are blocked with an M10 nut and bolt, firmly locking the legs in position.

* For easy manoeuvrability, GUIL manufactures sets of four castors for telescopic legs (Ref. CQR/5).

Note: When we specify the height of the legs, the height given is of the stage: from the floor to the top surface of the platform.





Ref. PTA5-D   •   TELESCOPIC LEGS WITH LEVELLER

Telescopic legs manufactured with high strength extruded aluminium that have an external square profile of 50 x 50 mm and a leveller with M12 stainless steel rod and blocking nuts.

The leveller come with a foot pad injected with special industrial, non-marring, non-skid rubber ensuring a perfect grip to any surface and prevents damage to delicate flooring (parquet, laminate, etc.).

Its telescopic system allows different heights with just one set of legs (adjustable millimetre by millimetre) and ensures a perfectly levelled stage when setting up on uneven surfaces (ramps, stairs, outdoor terrain, etc.)

The legs have an external profile with four 4mm internal nerves and an internal profile with 9 internal nerve walls.

The leg height is blocked with a double locking system. Once the desired height is achieved the leg is secured with a metallic pressure knob, then, as an added safety measure legs are blocked with an M10 nut and bolt, firmly locking the legs in position.
Finer height adjustment is made using the stainless steel M12 leveller, which is screwed into a stainless steel receiver in the leg (not directly into the leg profile).

Note: When we specify the height of the legs, the height given is of the stage: from the floor to the top surface of the platform.

Ref. PTA5-P   •   TELESCOPIC LEG WITH LOCKING PIN AND LEVELLER

Telescopic legs manufactured with high strength extruded aluminium that have an external square profile of 50 x 50 mm and are adjustable using a locking pin and leveller with M12 stainless steel rod and blocking nuts.

The leveller come with a foot pad injected with special industrial, non-marring, non-skid rubber ensuring a perfect grip to any surface and prevents damage to delicate flooring (parquet, laminate, etc.).

Its telescopic system allows different heights with just one set of legs (adjustable millimetre by millimetre) and ensures a perfectly levelled stage when setting up on uneven surfaces (ramps, stairs, outdoor terrain, etc.)

The leg height is blocked with a steel locking pin and metallic knob (ergonomic design), guaranteeing that the legs are locked in position at the desired height. Finer height regulation is made using the adjustable stainless steel M12 leveller.

The legs have an external profile with four 4mm internal nerves and an internal profile with 9 internal nerve walls.

The leg height is blocked with a steel locking pin and metallic knob (ergonomic design), guaranteeing that the legs are locked in position at the desired height Finer height adjustment is made using the stainless steel M12 leveller, which is screwed into a stainless steel receiver in the leg (not directly into the leg profile).

Note: When we specify the height of the legs, the height given is of the stage: from the floor to the top surface of the platform.

Ref. PTA5-R   •   TELESCOPIC LEGS WITH A HINGE TO MAKE AN ANGLE

Telescopic legs are manufactured with high strength extruded aluminium, have an external square profile of 50 x 50 mm and special non-skid rubber terminals secured to the leg with two screws.

Its special design allows you to adjust the angle of the leg for it to be used in set-ups on slopes or to make ramps. The angle is adjusted and secured according to your requirements.

Its telescopic system allows different heights with just one set of legs (adjustable millimetre by millimetre) and ensures a perfectly levelled stage when setting up on uneven surfaces (ramps, stairs, outdoor terrain, etc.)

The legs have an external profile with four 4mm internal nerves and an internal profile with 9 internal nerve walls.

The leg height is blocked with a double locking system. Once the desired height is achieved the leg is secured with a metallic pressure knob, then, as an added safety measure legs are blocked with an M10 nut and bolt, firmly locking the legs in position.

Ref. PTA5-F   •   FIXED HEIGHT LEGS

Fixed height legs manufactured with high strength extruded aluminium that have an external square profile of 50 x 50 mm and four 4mm internal nerves. The legs have a special non-skid injected rubber terminals ensuring a perfect fit to any surface.

Note: When we specify the height of the legs, the height given is of the stage: from the floor to the top surface of the platform.

Ref. PTA5-N   •   FIXED HEIGHT LEGS WITH LEVELLER

Fixed height legs manufactured with high strength extruded aluminium that have an external square profile of 50 x 50 mm and four 4mm internal nerves.

These legs have a leveller with M12 stainless steel rod and blocking nuts, which allows us to adjust the height by 5cm, guaranteeing durability and a perfect adjustment on slightly uneven ground.

The leveller come with a foot pad injected with special industrial, non-marring, non-skid rubber ensuring a perfect grip to any surface and prevents damage to delicate flooring (parquet, laminate, etc.).

Note: When we specify the height of the legs, the height given is of the stage: from the floor to the top surface of the platform.

Each TM440XL Deck is supplied complete with two connectors which guarantee maximum safety in your set-ups:

TMU-01: Quick anchoring system for the TM440, TM440XL, TM440XL, TM300 and TM441 pallets by joining their profiles (guide). This system, injected into metal with a zinc-plated finish, is designed to avoid the separation of pallets placed at the same height.

The anchoring and leveling union ref. TMU-01 is a very useful component, as it ensures that there is no gap / joint, or unevenness between the modules.

TMU-02: Allows the joint of the pallets internally, frame with frame; reinforcing the entire modular composition of the stage. (Made of stainless steel).

Note:For every 4 telescopic 70-120cm or higher legs ordered, one stainless steel leg-to-leg clamp connector Ref. TMU-04 is also included.

TMU-04 Leg-to-leg clamp connector (stainless steel): Connects platforms by two legs guaranteeing a firm platform set-up.

TMU-08 4-leg connector: Connects platforms by four legs.

TMU-04

TMU-08

Standard sizes include the following references/dimensions:

  • Ref. TM440XL/2×0,5: 2000 x 500 mm Deck (1400 kg/m2). 21 mm thick, birch plywood. It includes 1 x TMU-01 and 1 x TMU-02 clamp connectors.
  • Ref. TM440XL/2×1: 2000 x 1000 mm Deck (1400 kg/m2). 21 mm thick, birch plywood. It includes 1 x TMU-01 and 1 x TMU-02 clamp connectors.

    * Other shapes and sizes can be made to order.

Tarima-de-aluminio-Formas

MAKE YOUR STAGE WITH DECKS OF DIFFERENT SHAPES AND SPECIAL FINISHES

Diferentes Acabados
TM440 Colores

> Decks with transparent methacrylate, diamond plate and smooth aluminium, rubber, grilling, carpeted etc. panels.

> Different coloured decks: The frame & legs can be painted in different colours if required.

DETAILS THAT MAKE THE DIFFERENCE

Ref. TM440XL
Stage platform – 1400 Kg / m2 Certified in accordance with German Standard DIN 15921

  1. Triple system of fastening the board to the frame:
    – High fixation foam (avoiding direct contact of the board with the aluminum).
    – Stainless steel screws.
    – Silicone to seal all the joints.
  2. Legs with 50 x 50 mm outer profile, with 4 mm thick reinforcements.
  3. Terminal injected in non-slip rubber. Fastening by 2 screws.
  4. Reinforced aluminum brackets. Fastening by 4 stainless steel screws. Metal knob.
  5. No need for reinforcing bars.
  6. Plywood board, Finnish Birch Wood.
  7. Phenolic plywood board (21 mm), non-slip with sealed edges.
  8. Reinforced aluminum frame (94 mm).
  9. GUIL platforms: For all weather conditions.

STAGE ACCESSORIES

Complete the platform with the necessary accessories for your assembly

(Ramps, Transport and storage trolleys, Seats, Handrails…)

1 Accesorios - PATAS
LEGS
2 Accesorios - SISTEMAS DE UNIÓN
CONNECTORS
3 Accesorios - QUITAMIEDOS
SAFETY RAILS
4 Accesorios - ESCALERAS
STAIRS
5 Accesorios - MÁS ACCESORIOS
MORE ACCESSORIES
