Lifting towers – Front Loading (For Line Array & Truss)

Ref. ULK 500

Lifting Tower designed to lift loads of up to 220 kg (485 lb) up to a maximum height of 6.30 m (20 ft 8 in).

The ULK 500 may be small in size but the attention to detail put into its design is vast.

Lifting tower developed for holding heavy weights at a great height. Its user friendly, compact design and great strength, make the ULK Lift an ideal complement for any kind of event.

 SPECIFICATIONSULK 500
Maximum Height6.30 m I 20 ft 8 in
Maximum Load220 kg I 485 lb
Safety SystemsASB System (Automatic Safety Blocking System)
IPB System (Internal Pendulum Brake) + MSU System
Brake WinchDouble-handled
Height stowed1.70 m I 5 ft 7 in
Horizontal TransportIncluded (2 x Ø 100 mm wheels)
WheelsSecured to the base with 4 fixing points
Leveller screw jacksTrapezoidal thread TR24x5.
Greater durability and speed
MaterialAluminium (alloy EN AW 6082-T6) & Steel. BLACK Colour
Complies with StandardsDGUV 17 & 18, DGUV Rule 115-002 (Formerly BGV-C1)
DIN EN 17206 (Replaces DIN 56950-1), 2006/42/CE
Net Weight 117 kg I 258 lb
Sections 5 Sections – Profile dimension (width): 135 mm I 5.3 in

Maximum Height: 6.30 m (20 ft 8 in) / Maximum Load: 220 kg (485 lb)

VIDEOS
DOWNLOADS
  • SAFETY
  • LOAD CHART
  • BASE
  • PROFILES
  • FORKS
  • TRANSPORT

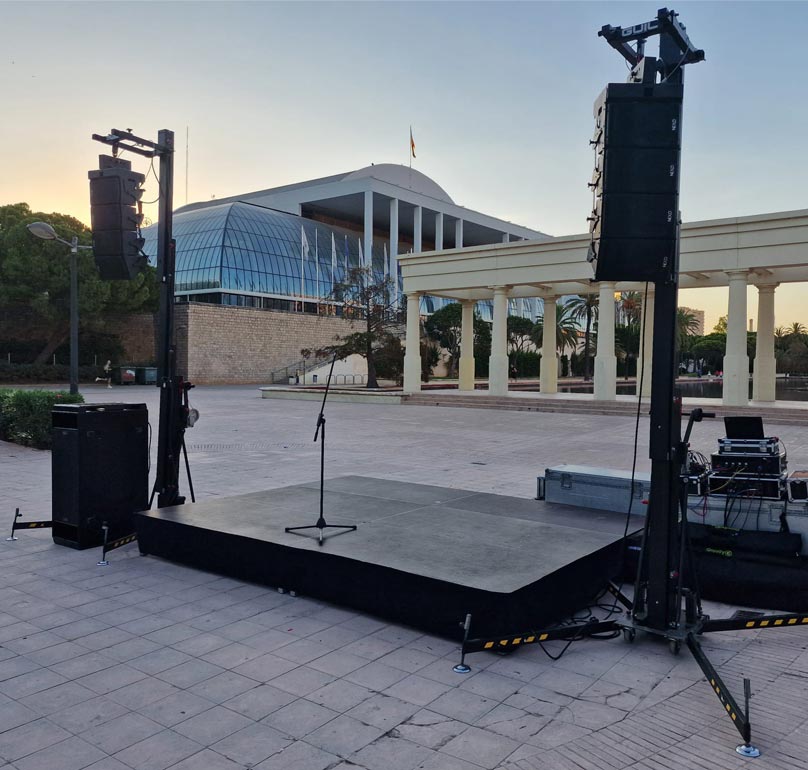

  • APPLICATIONS

ULK Lifts comply with current safety standards: DGUV Regulation 17&18, DGUV Rule 115-002, DIN 56950-1, 2006/42/CE guaranteeing maximum safety and resistance, complying with the lightweight, sturdiness and manoeuvrability requirements needed to lift audio equipment. Thanks to its easy handling and its simple and quick assembly, ULK Lift can be considered as one of the most convenient and functional lifts on the market.

ULK 500 is equipped with three safety systems to guarantee maximum reliability and resistance:

hand winch (double-handled) -BULL300D

  Automatic Brake Winch with two handles

Load remains in position whenever the handles are released.

ASB-System

  ASB System (Automatic Safety Blocking System)

 Consisting of safety knobs which permit the user to block and unblock each of the mast sections.

IPB-System

  IPB System (Internal Pendulum Brake)

Consists of an internal pendulum system that is automatically activated on each mast section if they were to suddenly fall, which can be easily unblocked by a trigger on each profile.

MSU-System

  MSU system (Mast Section Unblocking system)

Special levers on each mast section to unblock the internal pendulum brake system without having to dismantle the tower.

IMPORTANT: THE LIFT IS NOT TO BE USED AS A HOIST FOR LIFTING, SUPPORTING OR TRANSPORTING PEOPLE.

CAUTION: For outdoor assemblies, the tower must be secured with slings, wires, ropes, etc. to prevent movement caused by windy conditions and guarantee maximum stability.

Base-ULK400-500+PLUS

Compact base of 570 x 460 mm, manufactured in sturdy steel and finished in a textured black powder coating (Epoxi) special for outdoor use.

> Base is provided with:

4 heavy-duty castors (2 swivel and 2 rigid, Ø100 mm) for easy handling. The sturdy base is specially designed so that these lifts can be used with forklift trucks.

4 mast steel braces for greater lift stability and also to protect the aluminium mast sections when the lift is being moved horizontally.



Its four detachable legs, manufactured with reinforced steel, come complete with leveller screw jacks that have reinforced nylon injection moulded spin handles (ergonomic design) with double thread and speed which facilitates the levelling task. Their non-slip foot plates ensure a perfect adjustment of the tower to the floor surface.

mast steel braces-ULK400-500+PLUS

The Lifting Tower consists of extruded aluminium mast sections. These sturdy sections are extended by means of pulleys with bearings (covered with nylatron shells) and Ø5 mm galvanised steel wire rope with steel core (Composition: 7×19+0), specially manufactured for lifting heavy loads (DIN 3060).

Ref ULK_Cable
5-Profiles-ULK500
Profiles-ULK400-500+PLUS
Forks-ULK400-500+PLUS

ULK 500 Lifting towers are fitted with detachable 600 x 60 x 60 mm steel forks, and have a loading height of 19 cm from the floor which makes its loading effortless. (Comes with magnetic locking bolts for a quick set-up)

The forks have two fundamental features:

– Adjustable design; to accommodate different load sizes.

– The forks can be removed; for a more convenient transporting and storage of the tower.



Magnetic locking bolts-Ref-ULK

To make moving and loading them in vehicles easy, the ULK Towers have two heavy-duty wheels (Ø 100 mm).

Wheels-Transport-ULK400-500+PLUS
Transporte-ULK500+PLUS
Lifting towers-ULK400-500+PLUS

Detalles-que-nos-caracterizan-TORRES-ULK500-en

DETAILS AND COMPONENTS THAT MAKE THE DIFFERENCE

Ref. ULK 500
LiftingTower. Maximum Height: 6.30 m (20.7 ft) / Maximum Load: 220 kg (485 lb)

  1. Made out of extruded aluminium mast sections and extended by means of pulleys with ball bearing and a non-rotating steel wire rope.
  2. Reinforced forks. Maximum strength. Adjustable and detachable design.
  3. Galvanised steel wire rope. Construction: 7×19+0. Cable resend system with steel pulleys.
  4. More mast overlap.
  5. Four Stabiliser braces for greater lift stability.
  6. To ease its horizontal moving and its loading in vehicles, the ULK Towers have two heavy-duty wheels (Ø 100 mm).
  7. Leveller screw jacks with double thread and chromed non-slip foot plates.
  8.  MSC System– Mast Sequence Control System
  9. MSU System– Mast Section Unblocking System

SAFETY MEASURES

  1. ASB System– Automatic Safety Blocking System
  2. IPB System– Internal Pendulum Brake System
  3. Auto-brake Winch. Complies with CE Machinery Directives.
