Telescopic lifting towers “Top Loading”. Folding base
Compact telescopic lift for spotlights, specially designed for easy transportation when folded. It has been certified to lift loads of up to 85 kg to a maximum height of 3.30 metres and has a Ø 35 mm top shaft.
Its user friendly and compact design, with a folding and adjustable base, make the ELC-700 Lift ideal for any kind of temporary event, both outdoors and indoors.

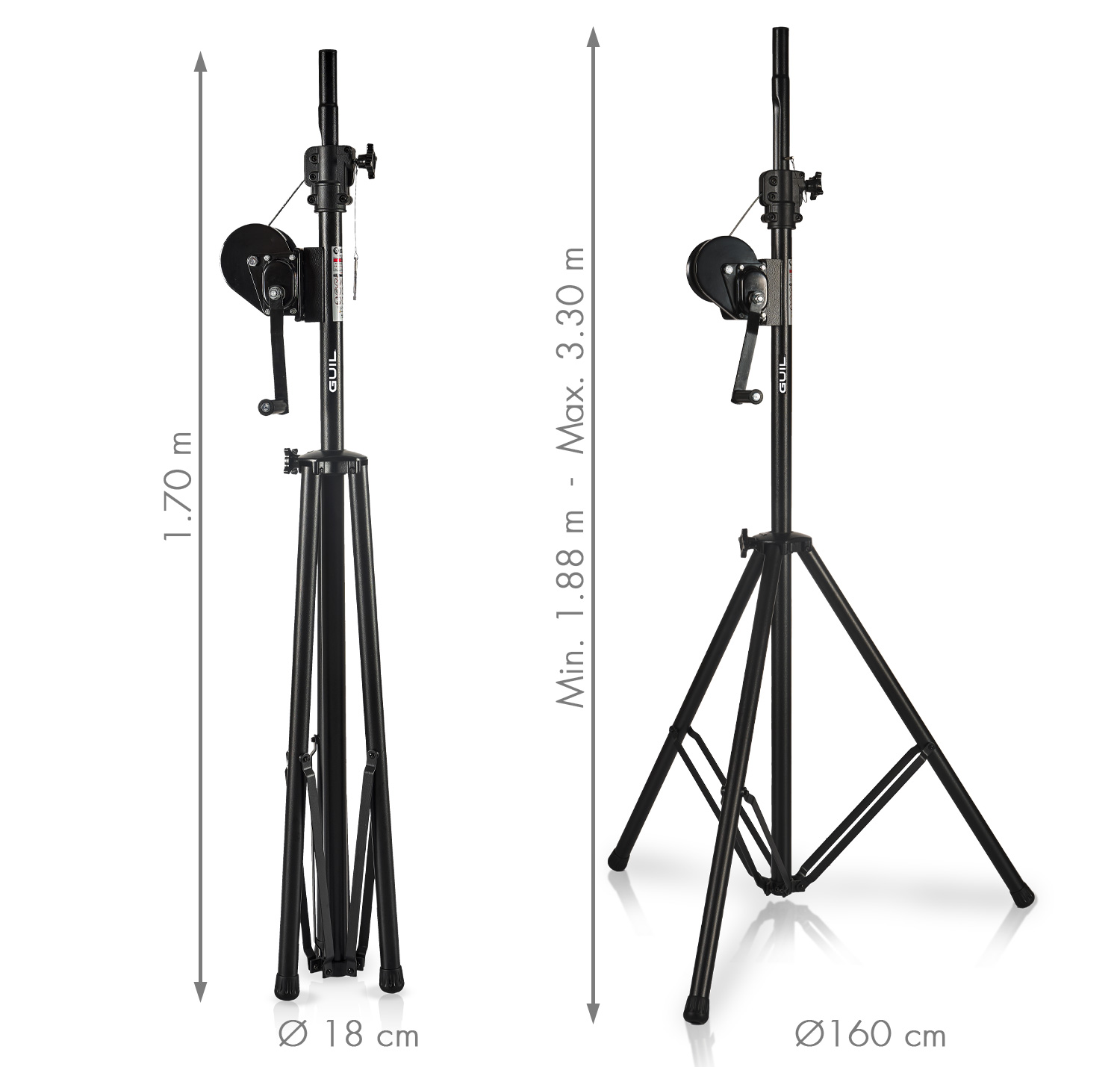

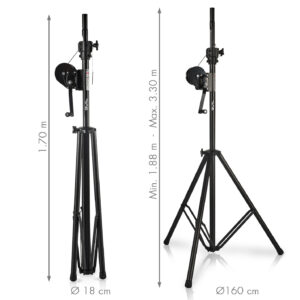

Folded dimensions:
* 260 x 320 x 1700 mm (with winch handle)
* 260 x 160 x 1700 mm (without winch handle)
| SPECIFICATIONS | ELC-700 |
| Maximum Height: | 3.30 m I 10.83 ft |
| Maximum Load: | 85 kg I 187 lb |
| Safety System: | ASB System-3 (Safety Blocking System) |
| Brake Winch: | 450 kg |
| Height stowed: | 1.70 m I 5.60 ft |
| Material: | Steel |
| Complies with Standards: | DGUV 17 & 18, DGUV Rule 115-002 (Formerly BGV-C1) |
| DIN EN 17206 (Replaces DIN 56950-1), 2006/42/CE | |
| Net Weight: | 13 kg I 28.67 lb |
| Adaptors: | Ø 35 mm I Ø 0.11 ft |
Maximum Height: 3.30 m (10.80 ft) / Maximum Load: 85 kg (187 lb)
ELC-700 is equipped with two safety systems which guarantee maximum reliability and strength:
1.- It is equipped with a hand winch (450 Kg) with automatic braking system.
Its auto-block system ensures the load remains in position whenever the handle is released.
2.- ASB System-3 : Safety Blocking System with locking pin.
The ELC-700 wind-up stand complies with current European standards and safety norms: DGUV Regulation 17 & 18, DGUV Rule 115-002, DIN 56950-1 and 2006/42/CE
ELC-700 Lift complies with the lightweight, sturdiness and manoeuvrability requirements needed to lift heavy loads guaranteeing maximum safety and resistance.
Compact base made in steel with three legs, one of them telescopic (umbrella style) and fitted with rubber feet, to prevent sliding and guarantee a perfect adjustment to the floor surface.
Its special design (there are no loose parts) offers technicians a fast and easy lift set-up (no tools required).
For a quick, safe and effortless lifting process, ELC-700 Lift is equipped with a hand winch with automatic braking system (450 Kg), which stops the load at the desired height when the handle is released.
It has a compact and lightweight design for easy handling, transportation and storage and can fit in small vehicles.
This means that one technician can transport and use the ELC-700 lift with ease, saving time and increasing productivity.
GUIL – Technical Specifications ELC-700
GUIL ELC-700 Lifting Towers Certificate
