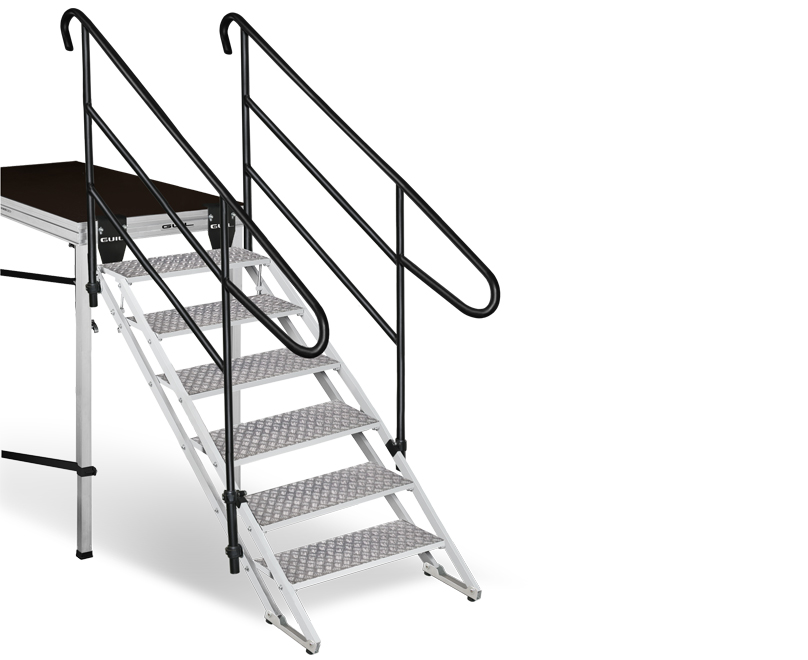

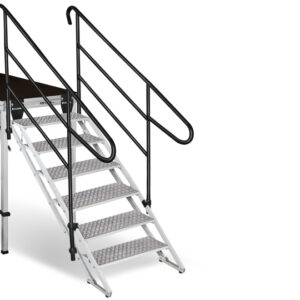

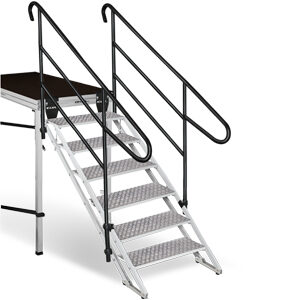

The ECP-6 staircase, composed of 6 steps, is a practical, multi-purpose item with a hinged design, which allows it to be used on stages from 900 to 1800 mm high.

Its folding design and reinforced aluminium structure mean that our ECP-6 staircase is very robust, and at the same time light and compact, making it easy to transport and store.

INDOOR AND OUTDOOR USE:  Our ECP stairs are made in aluminium, both the reinforced structure and the steps and handrails, which prevents them from rusting.

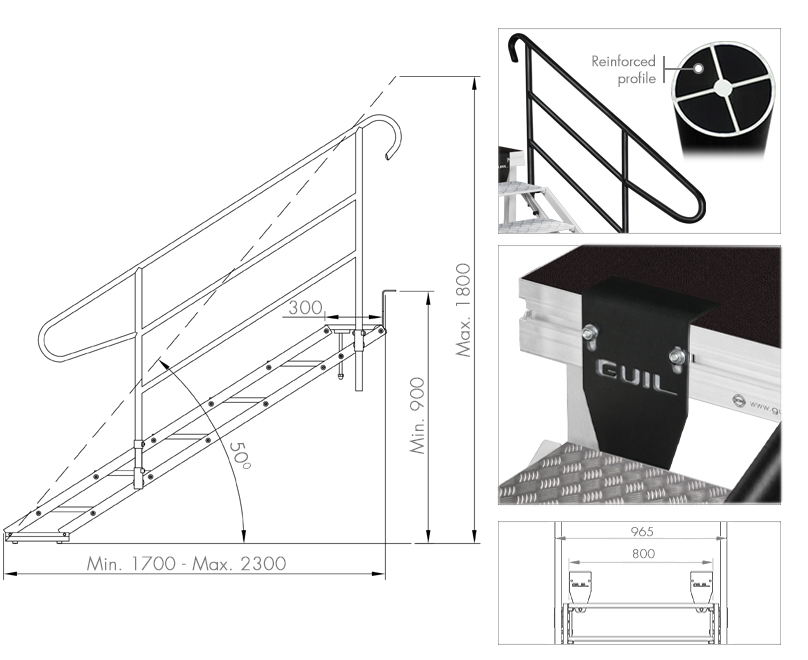

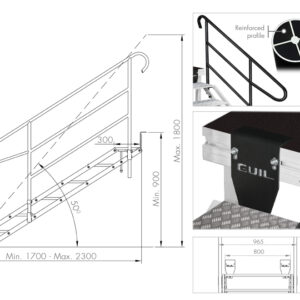

QUICK & EASY SET-UP:  The same staircase can be used for stages from 900mm to 1800mm in height, simply by adjusting the inclination of the steps and regulating them with the fixing system.

STEPS:  The ECP-6 adjustable staircases are composed of four reinforced steps of 300x800mm, each one made of aluminium with anti-slip diamond plate surface.

HANDRAIL:  The staircase includes a set of handrails (Ref. PSA-05) made of Ø 35 mm tube with internal cross-shaped reinforcement, made of high-strength aluminium and finished in black powder paint.  Its design with two horizontal bars guarantees greater safety for the users.  The handrails are supplied with six connectors to attach them to the staircase structure, including an inner plate to avoid marking the rails and to make them last longer.

CONNECTORS:  The staircase is attached to the stage deck with two reinforced steel plates fastened with two screws each to the continuous rail slot on the frame, securing it perfectly to the stage.

NOTE:  If the event requires wider steps, two staircases can be fitted together.

To provide a solution for all stage heights, the ECP staircase is available in two versions:

• ECP-4: 4 steps. For stages of 700 – 1300 mm height (Net weight: 36 Kg)
• ECP-6: 6 steps. For stages of 900 – 1800 mm height (Net weight: 48 Kg)
