Lifter – Top Loading
Compact material lift certified to raise its maximum load of 125 kg (276 lb) to its maximum lifting height of 3.50 metres (11 ft 6 in). Stowed height of only 1.35 m (4 ft 5 in). Its user friendly and compact design, with folding and adjustable four-legged base, makes the ELC-720/I Lift an ideal complement for any kind of lifting task that has to be done in small spaces (both indoors and outdoors), although it performs unbeatably in workplaces of any size.
► Incorporates the special WFD (WEIGHT-FREE DESCENT) system, which allows the lifter’s mast to be lowered with no load.
► Level the lifter on uneven ground: One of the feet on the base has a telescopic design.
► You can work right next to the wall.
► Optional wheels for greater versatility and manoeuvrability.
| SPECIFICATIONS | ELC-720/I |
| Maximum height | 3.50 m I 11 ft 6 in |
| Maximum Load | 125 kg I 276 lb |
| Minimum Load Height | 1.35 m I 4 ft 5 in |
| Minimum Load | Not required (equipped with the WFD system) |
| Stowed dimensions | Height: 1.35 m I 4 ft 5 in – Base: Ø 24 cm I 9.5 in |
| Transport dimensions | Height: 1.35 m I 4 ft 5 in – Base: 22 x 33 cm I 8.7 x 13 in |
| Base | 3 fixed legs and 1 adjustable for use on uneven ground |
| Nett Weight | 25 kg I 55 lb |
| Footprint | Min: Ø 106 cm I 3 ft 6 in – Máx: Ø 154 cm I 5 ft 1 in |
| Material | Steel |
| Adaptors | Ø 35 mm I 1.4 in (male) |
| Winch | Auto-brake |
| Complies with Standard | Machinery directive: 2006/42/CE |
MULTIPLE APPLICATIONS
Thanks to the wide range of models, adaptors and accessories, our lifting towers are used in many fields, and are acknowledged worldwide for their high quality and durability.
ADVANTAGES OF USING THE ELC-720/I LIFTER
► INCREASED PRODUCTIVITY & EFFICIENCY: The ELC-720/I lifter helps technicians to complete jobs more quickly, safely and efficiently, lifting loads for installation, maintenance, storage or use. Getting the job done more quickly, of course, increases your productivity and efficiency. LET YOUR GUIL LIFTER DO THE HARD WORK.
► SAFETY AT WORK: GUIL lifters improve security for installers, eliminating risks from handling heavy or bulky items at height. The ELC-720/I tower lifts these items and holds them while they are connected and fastened in place, so that the technician has their hands free to do the connection and fastening work without having to support the weight of the unit.
► COMPACT DIMENSIONS FOR ACCESS & WORK IN TIGHT SPACES: Its light weight and reduced dimensions mean the ELC-720/I can be carried by hand to any work location. Its umbrella-style legs (one of them adjustable to level the lifter on uneven surfaces) can be set in one of three positions, with a very small footprint. You can work indoors or outdoors, in places as cramped as bathrooms or terraces – as well as open spaces, naturally – with no need to put up a scaffold tower.

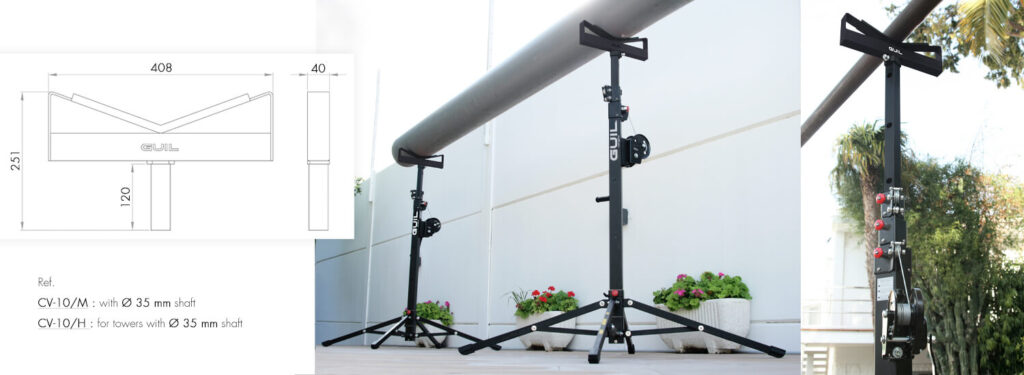

The female tube of the ELC-720/I lifter is designed for use with accessories with a male insertion shaft of Ø 35 mm. GUIL manufactures a wide range of attachments such as load platforms, awning trays, pipe cradles, optional wheels, and others. Choose the best accessory for your requirements.
√ WFD system (WEIGHT-FREE DESCENT) which allows the load tray to be lowered without any weight.
√ Timesaving = Maximum Productivity.
√ Maximum stability, safety and durability.
√ Raises loads of 125 kg to 3.50 metres speedily and without effort.
√ Level the lifter on uneven ground: One of the feet on the base has a telescopic design.
√ Auto-brake winch that immobilises the load when you let go of the handle.
√ Adjustable, compact footprint allows you to work in tight spaces.
√ Stowed height of only 135 cm, for easy, convenient loading.
√ Quick and easy set-up with no tools required. There are no loose parts. Easy maintenance.
√ Value your independence: just take your ELC-720/I wherever it’s needed and start lifting. No relying on an electricity supply or batteries.
√ With its reduced size and weight, it is easily manoeuvred and operated by one technician and can be transported in a car or a van.
√ Optional set of wheels with brakes available for greater mobility
√ Manufactured with the most advanced technology, undergoing rigorous quality controls and complying with European CE standards.
√ Wide range of adaptors, with several models of load-tray, as well as roll-lifting adaptors, floodlight holders, etc.
√ For industrial, commercial or domestic installations. For both indoor and outdoor use.
ELC-720/I lifters are manufactured with the most innovative equipment and techniques, using the highest quality components, thus guaranteeing the maximum level of safety and strength, complying with the sturdiness and manoeuvrability requirements needed to lift heavy loads.
The lifter is fitted with a hand winch with automatic braking system. Its auto-block system ensures the load remains in position whenever the handle is released.
ELC-720/I material lifters comply with the safety requirements according to the Directive 2006/42/CE on machinery that establishes “Essential health and safety requirements relating to the design and construction of machinery”.
BASE
Its special four-legged, umbrella-style folding design with three pre-set footprint dimensions of 106, 134 or 154 cm (3’ 6”, 4’ 5” or 5’ 1”) allows users to adjust the base footprint to the workspace available for use in small places (kitchens, bathrooms, terraces, etc).
TELESCOPIC LEG FOR LEVELLING: One of the ELC-720/I’s four legs is telescopic and can be adjusted to level the lifter if it is being used on an uneven surface. The spirit level installed above the winch allows the ELC-720/I to be positioned perfectly vertical.
OPTIONAL WHEELS (Ref. R-720): An optional set of four wheel adaptors, each with 2 double swivel castors (one of which has a brake), is available to make the ELC-720/I more mobile, and your job easier.
SPECIAL MAST CONSTRUCTION
This material lifter consists of three telescopic steel sections finished in a double coat of tough baked-on, microtextured polyester-epoxy paint especially for outdoor use, the base will stand up to the rigours of any installer’s life.
GUIL have designed a special mast construction that makes the operation of the lifters smoother and more efficient.
► The mast can be lowered even without a load.
► Welded reinforced top of each section, which strengthens the mast.
► Internal cushioning system on all four sides to stabilise the mast sections during operation.
► Double resend pulley = Less effort while lifting.
► Pulley protectors to protect the pulleys during handling and transportation, at the same time preventing the cable from coming off the pulleys.
► The top section comes with a reinforcing ferrule with an ergonomic metallic knob.
The ELC-720/I is quick and easy to set up and use, saving time and effort and getting jobs done efficiently and safely to improve productivity at work.
The load is lifted using an autobrake manual winch. The telescopic stages of the tower are kept at the required height by simply ceasing to turn the handle: the braking mechanism acts, blocking the load in place.
The ELC-720/I lifter incorporates the WFD (WEIGHT-FREE DESCENT) mechanism which allows the lifter’s mast to be lowered with no load, making operation quicker and more convenient for professionals.
The ELC-720/I manual lift has a compact and lightweight design (1.35 m stowed height, and only 24 kg) for easy handling, transportation and storage, can fit in small vehicles for maximum ease of transport, and needs only a small space for storage when not in use. This means that one technician can transport and use the ELC-720/I lift with ease, saving time and increasing productivity.
ONE LIFTER: INFINITE USES
GUIL’s ELC-720/I lifters have a wide range of uses in many different sectors, and we offer an ample variety of attachments for our lifters in order to provide the tools necessary for our users to undertake installation, maintenance and assembly tasks in safety, while saving time and effort. A selection of the sectors where our lifters are successfully and widely used all over the world includes:
• HVAC – Air conditioning, ventilation, heating
• Sun Protection: Awnings and pergolas
• Construction
• Fair stand assembly
• Installation of carpentry and metalwork items
• Roller blinds and doors
• Signs and billboards
• Maintenance work
• Marquee assembly
• Lighting and security cameras
• Material handling
• Warehousing and Storage
• Ceiling installations
Material lift to raise loads of up to 125 kg (275.58 lb) to 3.50 metres (11′ 5.80″).
-
