Lifter – Top Loading
Compact material lifter designed to raise loads of up to 125 kg (276 lb) to a maximum height of 4.60 metres (15 ft 1 in). Stowed height of only 1.45 m (4 ft 9 in), allowing professionals to get their job done quickly, safely and efficiently. Its compact 38 x 30 cm base with two wheels, and its ease of use, make the ELC-730/R lifter a perfect tool for installation and maintenance jobs, both indoors and out.
► Incorporates the special WFD (WEIGHT-FREE DESCENT) system, which allows the lifter’s mast to be lowered with no load.
► Provided levelling devices for a perfect vertical set-up.

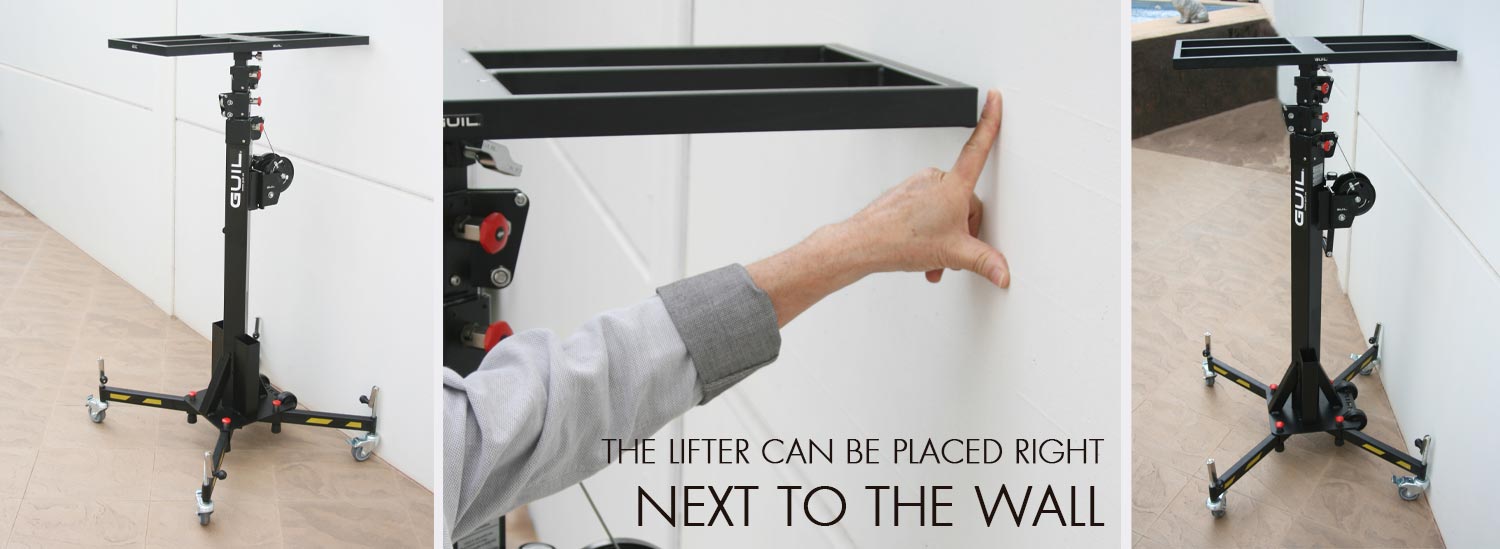

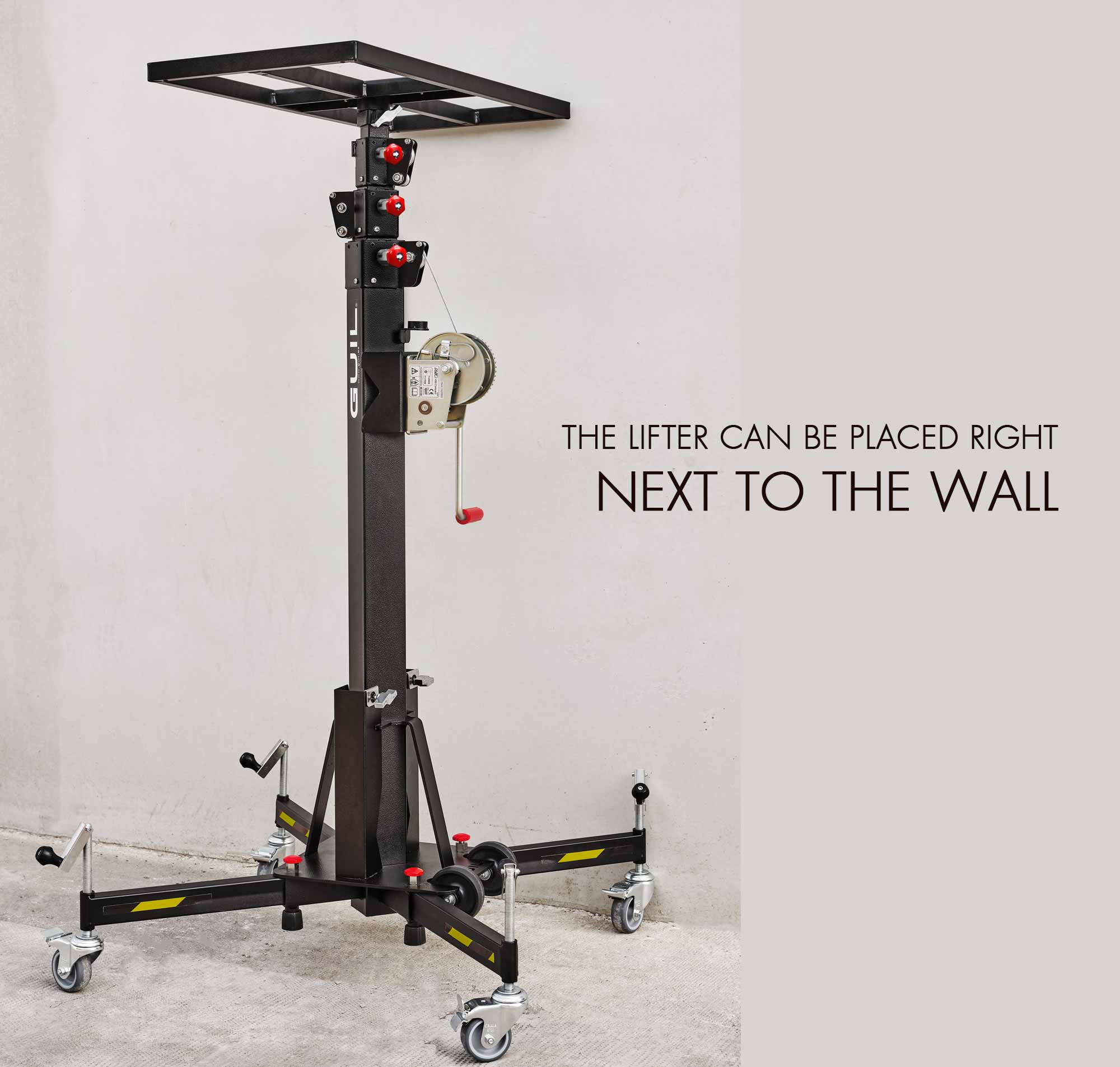

► You can work right next to the wall.
► Optional wheels for greater versatility and manoeuvrability.
► Manoeuvrability: Fitted with four legs with wheels for transportation and to position the load.
| SPECIFICATIONS | ELC-730/R |
| Maximum height | 4.60 m I 15 ft 1 in |
| Maximum Load | 125 kg I 276 lb |
| Maximum Load Height | 1.51 m I 5 ft |
| Minimum Load | Not required (equipped with the WFD system) |
| Stowed / transport dimensions | Height: 1.45 m I 4 ft 9 in – Base: 30 x 38 cm I 11.8 x 15 in |
| Legs | Height-adjustable for use on uneven ground |
| Nett Weight | 42 kg I 93 lb |

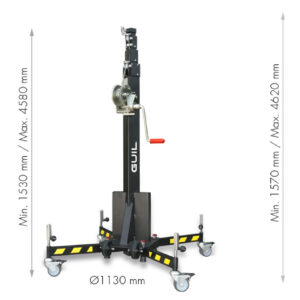

| Footprint | Ø 113 cm I 3 ft 8 in |
| Wheels | Legs: 4 height-adjustable swivel wheels with brakes Base: 2 transport wheels (Ø 100 mm I 3.9 in) |
| Material | Steel |
| Adaptors | Ø 35 mm I 1.4 in (male) |
| Winch | Auto-brake |
| Complies with Standard | Machinery directive: 2006/42/CE |
MULTIPLE APPLICATIONS
Thanks to the wide range of models, adaptors and accessories, our lifting towers are used in many fields, and are acknowledged worldwide for their high quality and durability.
ADVANTAGES OF USING AN ELC-730/R LIFTER
► INCREASED PRODUCTIVITY & EFFICIENCY: The ELC-730/R will help professionals to complete jobs more quickly, safely and efficiently, lifting loads for installation, maintenance, storage or use. No need to struggle up a step-ladder with bulky, heavy items in your hands. You can also use the lifter to lift your tools and equipment to a first or second floor if it is difficult to take them up the stairs. Getting the job done more quickly and with less effort, of course, increases your productivity. YOU CAN LET YOUR ELC-730/R LIFTER DO THE HARD WORK.
► SAFETY AT WORK: GUIL lifters improve security for installers, eliminating risks from handling heavy or bulky devices at height. The ELC-730/R holds these items while they are lifted, connected and fastened in place, so that the user has their hands free to do the installation and fastening work without having to support the weight of the unit.
► COMPACT DIMENSIONS FOR ACCESS & WORK IN TIGHT SPACES: Its user-friendly compact wheeled base allows the ELC-730/R lifter to move where other devices cannot go, through single doors or along corridors, small elevators, to access the area where it is needed. Its small footprint of 113 cm means that the lifter can be used to work in limited working spaces indoors or outdoors, such as bathrooms, stairwells or balconies – as well as open spaces, naturally – with no need to put up a scaffold tower.
The female tube of the ELC-730/R lifter is designed for use with accessories with a male insertion shaft of Ø 35 mm. GUIL manufactures a wide range of attachments such as load platforms, awning trays, pipe cradles, optional wheels and others. Choose the best accessory for your requirements.
√ WFD (WEIGHT-FREE DESCENT) mechanism which allows the load tray to be lowered without any weight.
√ Timesaving = Maximum Productivity.
√ Maximum stability, safety and durability.
√ Lifts loads of 125 kg to 4.60 metres quickly and effortlessly.
√ Levelling jacks and swivel wheels with brakes on the legs, to take your lifter wherever necessary and set it up totally vertical.
√ Auto-brake winch that blocks the load in place when the handle is released.
√ Its small base (30 x 38 cm) and footprint (Ø 113 cm) make it easy to reach and work in reduced spaces. You can move the load right up next to the wall.
√ Stowed height of only 151 cm, for easy, convenient loading.
√ Compact design – Easy manoeuvrability and loading in vehicles.
√ Fast, uncomplicated set-up with no tools necessary and no loose parts.
√ Self-sufficient tool: you just set up your ELC-730/R wherever it’s needed and start lifting. No electricity supply or batteries needed.
√ Due to its limited size and weight, it can be easily manoeuvred and operated by a single professional and transported in a car or a van.
√ Manufactured with the most advanced technology, undergoing rigorous quality controls and complying with European CE standards.
√ Wide range of adaptors, with several models of load-tray, as well as roll-lifting adaptors, floodlight holders, etc.
√ Ideal for industrial, commercial or domestic jobs. Can be used both indoors and outdoors
ELC-730/R lifters are manufactured with the most innovative equipment and techniques, using the highest quality components, thus guaranteeing the maximum level of safety and strength, complying with the sturdiness and manoeuvrability requirements needed to lift heavy loads.
The lifter is fitted with a hand winch with automatic braking system. Its auto-block system ensures the load remains in position whenever the handle is released.
ELC-730/R material lifters comply with the safety requirements according to the Directive 2006/42/CE on machinery that establishes “Essential health and safety requirements relating to the design and construction of machinery”.
BASE
The compact base (only 38 x 30 cm), which offers corridor and single-door access, is provided with two heavy-duty wheels (Ø 100 mm) for easy handling and positioning (wheelbarrow style). The base is manufactured in sturdy steel and finished in a double coat of textured, anti-scratch black powder paint especially for outdoor use.
Its small footprint of only 113 cm across each pair of legs allows the ELC-730/R to be used in tight spaces such as bathrooms or corridors, or spaces with obstacles that do not allow the use of lifters with larger bases.
We have succeeded in designing a lifter that offers considerable lifting height on this narrow base, expanding the range of locations where the user can work.
LEGS WITH LEVELLING JACKS
Exclusively-designed legs allow the load to be positioned very close to walls: The ELC-730/R has four detachable legs made of rectangular-section steel for greater strength. Greater mobility: The legs are fitted with swivel wheels with brakes and leveller screw jacks. This means that the lifter can be moved to the ideal position for every job and secured in place using the brakes.
Level your lifter: Each leg is fitted with a levelling jack which can be independently adjusted to regulate the height of the leg on an irregular floor or other terrain, meaning the ELC-730/R can be levelled perfectly with the help of the spirit level installed on the lifter.

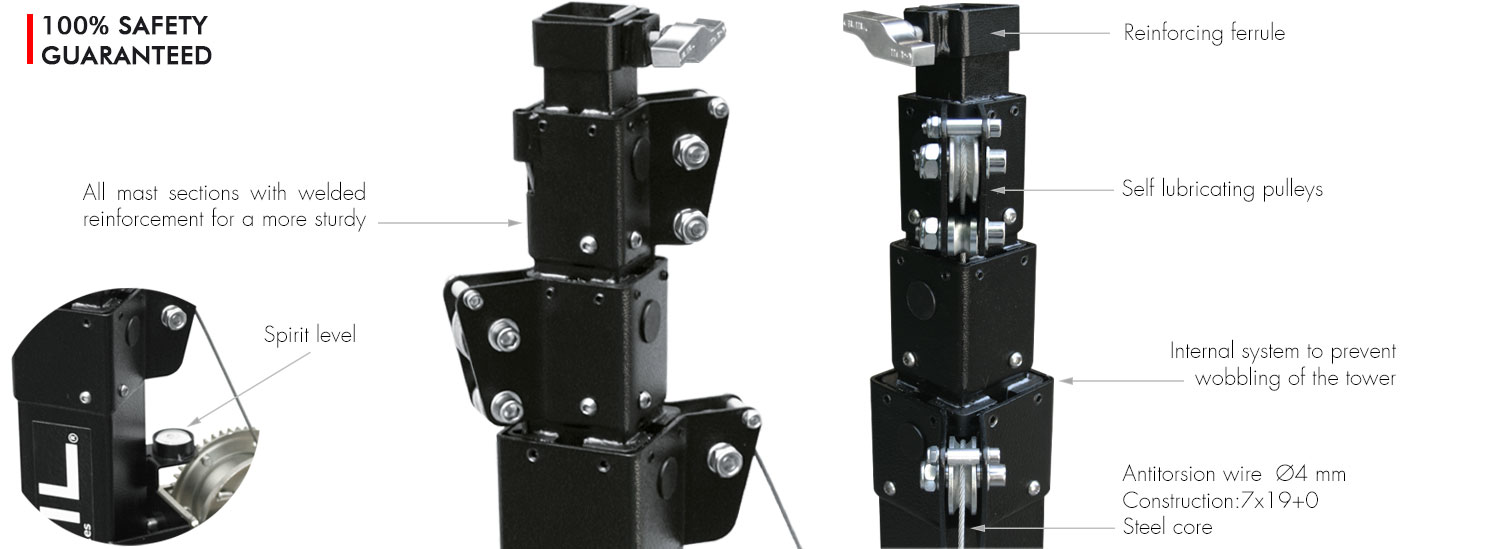

SPECIAL MAST CONSTRUCTION
This material lifter consists of four telescopic steel sections finished in a double coat of tough baked-on, microtextured polyester-epoxy paint especially for outdoor use, the base will stand up to the rigours of any installer’s life.
GUIL have designed a special mast construction that makes the operation of the lifters smoother and more efficient.
► The mast can be lowered even without a load.
► Welded reinforced top of each section, which strengthens the mast.

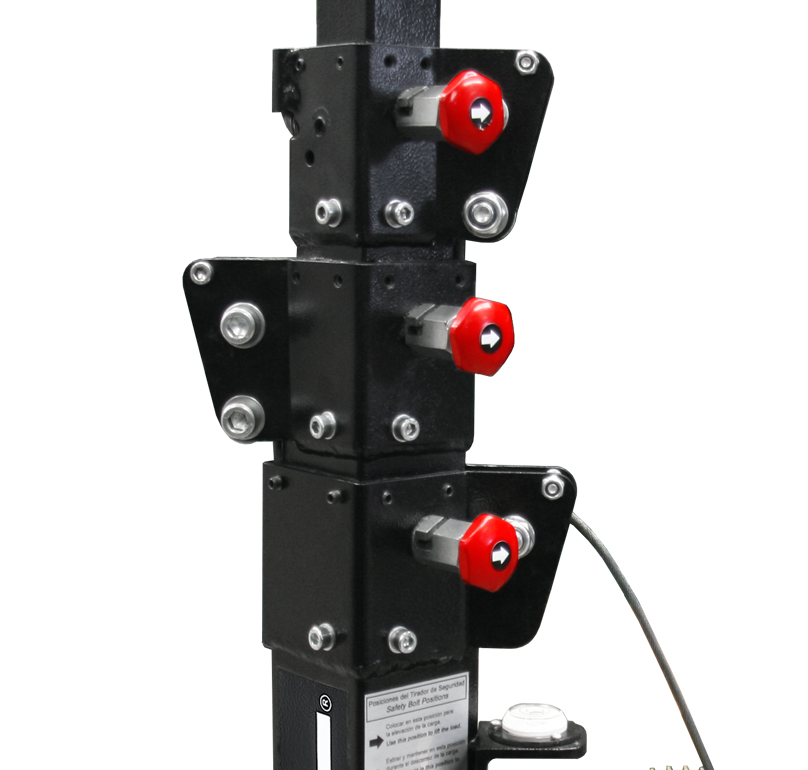

► Internal cushioning system on all four sides to stabilise the mast sections during operation.
► Double resend pulley = Less effort while lifting.
► Pulley protectors to protect the pulleys during handling and transportation, at the same time preventing the cable from coming off the pulleys.
► The top section comes with a reinforcing ferrule with an ergonomic metallic knob.
The ELC-730/R is quick and easy to set up and use, saving time and effort and getting jobs done efficiently and safely to improve productivity at work.
The load is lifted using an autobrake manual winch. The telescopic stages of the tower are kept at the required height by simply ceasing to turn the handle: the braking mechanism acts, blocking the load in place.
The ELC-730/R lifter incorporates the WFD (WEIGHT-FREE DESCENT) mechanism which allows the lifter’s mast to be lowered with no load, making operation quicker and more convenient for professionals.
The ELC-730/R lift has a compact and lightweight design for comfortable handling, transportation and storage, including two wheels in the base for easy manoeuvring. With its stowed height of only 145 cm and light weight, it can fit in small vans – and even a car – for maximum convenience, and needs only a small space for storage when not in use. One technician can transport and use the ELC-730/R lift with ease, saving time and increasing productivity.
To help take the ELC-730/R across rough terrain on building sites or similar workplaces, the specially designed optional set of Ø 26 cm flat-free wheels (Ref: RD-02) can be used, allowing the lifter to be transported wheel-barrow style, rather than carried, to the work site.
ONE LIFTER: INFINITE USES
GUIL’s ELC-730/R lifters have a wide range of uses in many different sectors, and we offer an ample variety of attachments for our lifters in order to provide the tools necessary for our users to undertake installation, maintenance and assembly tasks in safety, while saving time and effort. A selection of the sectors where our lifters are successfully and widely used all over the world includes:
• HVAC – Air conditioning, ventilation, heating
• Sun Protection: Awnings and pergolas
• Construction
• Fair stand assembly
• Installation of carpentry and metalwork items
• Roller blinds and doors
• Signs and billboards
• Maintenance work
• Marquee assembly
• Lighting and security cameras
• Material handling
• Warehousing and Storage
• Ceiling installations
