Elevadores - Carga Superior
ELC
Elevadores - Carga Frontal
TORO
| REFERENCIA | ALTURA MAXIMA | CARGA MAXIMA | ALTURA PLEGADO | PESO ELEVADOR | MEDIDAS |
|---|---|---|---|---|---|
| ELC-700 | 3.30 m | 85 Kg | 1.70 m | 13 Kg | Metros/Kilogramos |
| ELC-700 | 10 ft 10 in | 187 Lb | 5 ft 7 in | 29 Lb | Pulgadas/Libras |
| ELC-710 | 4.00 m | 100 Kg | 1.65 m | 20,5 Kg | Metros/Kilogramos |

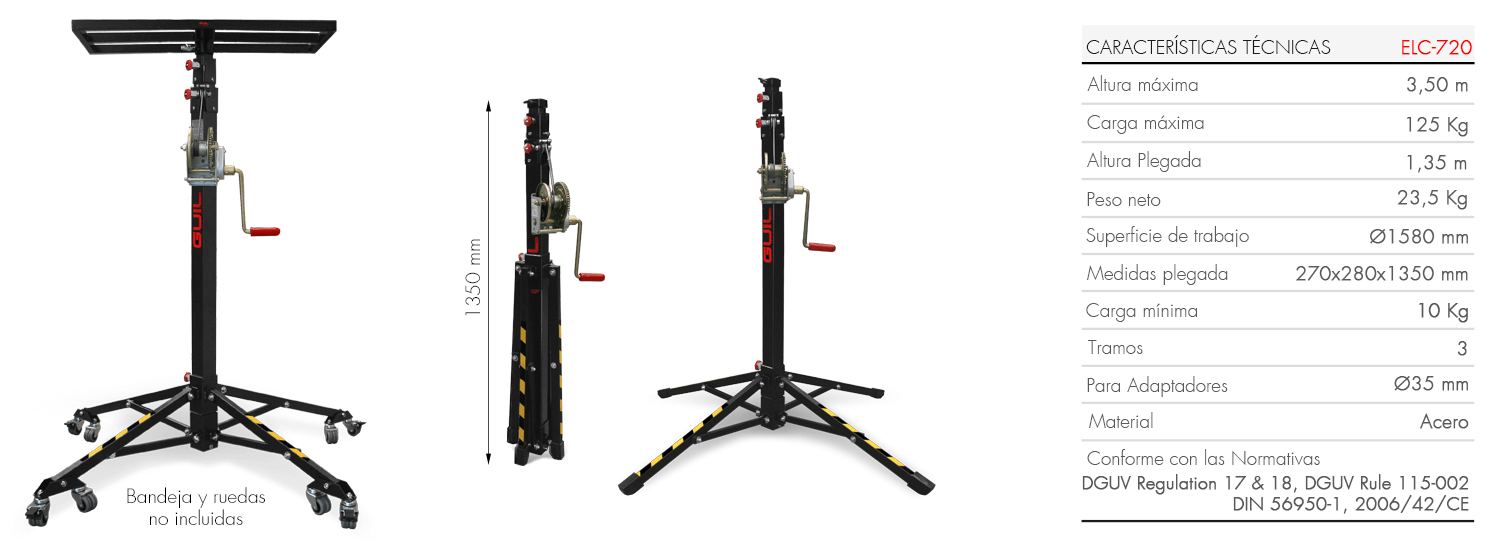

| ELC-720/I | 3.50 m | 125 Kg | 1.35 m | 25 Kg | Metros/Kilogramos |

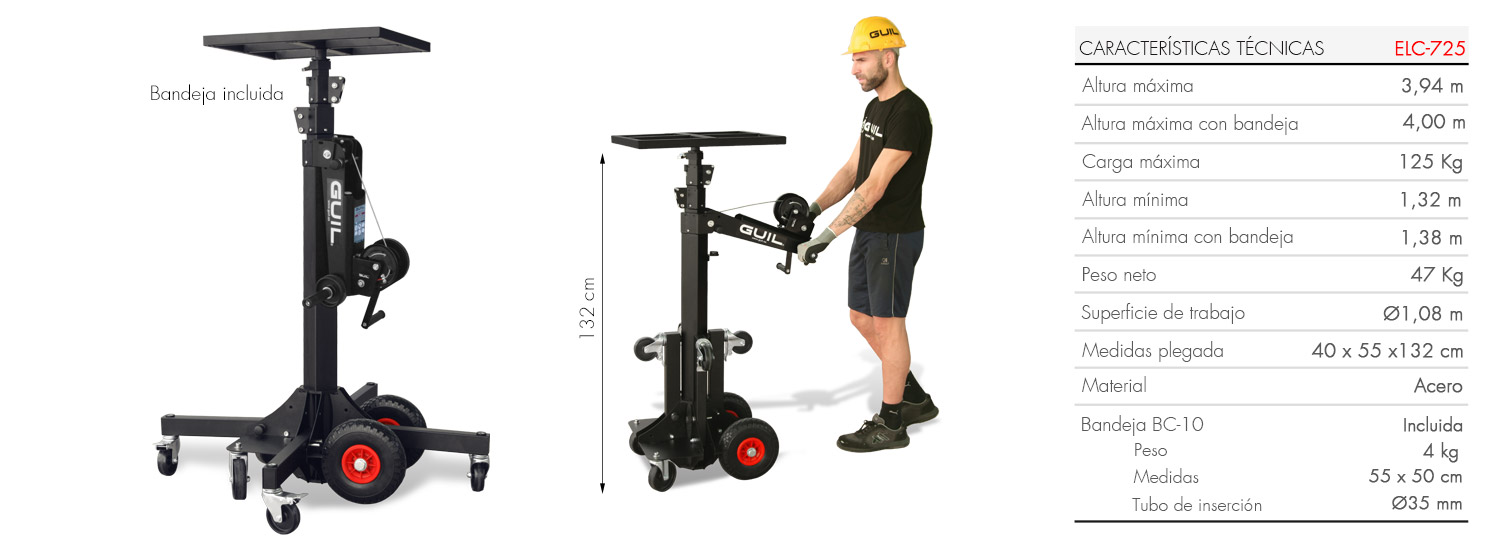

| ELC-725 | 4.00 m | 125 Kg | 1.32 m | 50 Kg | Metros/Kilogramos |
| ELC-725/D | 4.00 m | 125 Kg | 1.32 m | 51 Kg | Metros/Kilogramos |
| ELC-725/D | 13 ft 1 in | 275 lb | 4 ft 4 in | 112 lb | Pulgadas/Libras |
| ELC-730/R | 4.60 m | 125 Kg | 1.45 m | 42 Kg | Metros/Kilogramos |
| ELC-710 | 13 ft 1 in | 220 Lb | 5 ft 5 in | 45 Lb | Pulgadas/Libras |
| ELC-720/I | 11 ft 6 in | 275 Lb | 4 ft 5 in | 55 Lb | Pulgadas/Libras |
| ELC-750 | 4.50 m | 150 Kg | 1.53 m | 49 Kg | Metros/Kilogramos |
| TORO A-101/C | 2.90 m | 170 Kg | 1.75 m | 73 Kg | Metros/Kilogramos |
| ELC-725 | 13 ft 1 in | 275 Lb | 4 ft 4 in | 110 Lb | Pulgadas/Libras |
| TORO A-102/C | 4.10 m | 170 Kg | 1.75 m | 85 Kg | Metros/Kilogramos |
| ELC-730/R | 15 ft 1 in | 275 Lb | 4 ft 9 in | 93 Lb | Pulgadas/Libras |
| ELC-765 | 5.22 m | 230 Kg | 1.77 m | 98 Kg | Metros/Kilogramos |
| ELC-775 | 5.22 m | 270 Kg | 1.77 m | 100 Kg | Metros/Kilogramos |
| ELC-785 | 5.22 m | 300 Kg | 1.77 m | 102,5 Kg | Metros/Kilogramos |
| ELC-750 | 14 ft 9 in | 331 Lb | 5 ft | 108 Lb | Pulgadas/Libras |
| TORO B-201/C | 4.00 m | 250 Kg | 1.66 m | 125 Kg | Metros/Kilogramos |
| TORO B-201 PLUS | 5.00 m | 250 Kg | 1.96 m | 125 Kg | Metros/Kilogramos |
| TORO B-202/C | 5.15 m | 230 Kg | 1.66 m | 132 Kg | Metros/Kilogramos |
| TORO B-202 PLUS | 6.50 m | 230 Kg | 1.96 m | 141 Kg | Metros/Kilogramos |
| TORO A-101/C | 9 ft 6 in | 375 Lb | 5 ft 9 in | 161 Lb | Pulgadas/Libras |
| TORO A-102/C | 13 ft 5 in | 375 Lb | 5 ft 9 in | 187 Lb | Pulgadas/Libras |
| TORO B-203/C | 6.30 m | 220 Kg | 1.66 m | 139 Kg | Metros/Kilogramos |
| TORO D-401 | 3.55 m | 440 Kg | 1.98 m | 154 Kg | Metros/Kilogramos |
| TORO C-301/C | 3.85 m | 350 Kg | 1.60 m | 152 Kg | Metros/Kilogramos |
| TORO C-303 | 5.00 m | 350 Kg | 1.98 m | 161 Kg | Metros/Kilogramos |
| TORO D-402/C | 3.85 m | 420 Kg | 1.60 m | 163 Kg | Metros/Kilogramos |
| TORO C-302/C | 5.00 m | 330 Kg | 1.60 m | 169 Kg | Metros/Kilogramos |
| TORO D-404 | 5.00 m | 420 Kg | 1.98 m | 172 Kg | Metros/Kilogramos |
| TORO C-305 | 6.50 m | 320 Kg | 1.98 m | 178 Kg | Metros/Kilogramos |
| TORO D-403/C | 5.00 m | 400 Kg | 1.60 m | 179 Kg | Metros/Kilogramos |
| TORO C-304/C | 6.00 m | 320 Kg | 1.60 m | 182 Kg | Metros/Kilogramos |
| ELC-765 | 17 ft 2 in | 507 Lb | 5 ft 10 in | 216 Lb | Pulgadas/Libras |
| ELC-775 | 17 ft 2 in | 595 Lb | 5 ft 10 in | 220 Lb | Pulgadas/Libras |
| ELC-785 | 17 ft 2 in | 661 Lb | 5 ft 10 in | 226 Lb | Pulgadas/Libras |
| TORO D-406 | 6.50 m | 400 Kg | 1.98 m | 195 Kg | Metros/Kilogramos |
| TORO D-405/C | 6.00 m | 350 Kg | 1.60 m | 196 Kg | Metros/Kilogramos |
| TORO C-306 | 8.00 m | 300 Kg | 1.98 m | 195 Kg | Metros/Kilogramos |
| TORO D-407 | 8.00 m | 350 Kg | 1.98 m | 215 Kg | Metros/Kilogramos |
| TORO E-501 | 3.45 m | 200 Kg | 1.61 m | 120 Kg | Metros/Kilogramos |
| TORO E-501 | 11 ft 4 in | 441 Lb | 5 ft 3 in | 265 Lb | Pulgadas/Libras |
| TORO B-201/C | 13 ft 1 in | 551 Lb | 5 ft 5 in | 276 Lb | Pulgadas/Libras |
| TORO B-201 PLUS | 16 ft 5 in | 551 Lb | 6 ft 5 in | 276 Lb | Pulgadas/Libras |
| TORO B-202/C | 16 ft 11 in | 507 Lb | 5 ft 5 in | 291 Lb | Pulgadas/Libras |
| TORO B-202 PLUS | 21 ft 4 in | 507 Lb | 6 ft 5 in | 311 Lb | Pulgadas/Libras |
| TORO B-203/C | 20 ft 8 in | 485 Lb | 5 ft 5 in | 306 Lb | Pulgadas/Libras |
| TORO D-401 | 11 ft 8 in | 970 Lb | 6 ft 6 in | 339 Lb | Pulgadas/Libras |
| TORO C-301/C | 12 ft 8 in | 772 Lb | 5 ft 3 in | 335 Lb | Pulgadas/Libras |
| TORO C-303 | 16 ft 5 in | 772 Lb | 6 ft 6 in | 355 Lb | Pulgadas/Libras |
| TORO D-402/C | 12 ft 8 in | 926 Lb | 5ft 3 in | 359 Lb | Pulgadas/Libras |
| TORO C-302/C | 16 ft 5 in | 727 Lb | 5 ft 3 in | 373 Lb | Pulgadas/Libras |
| TORO D-404 | 16 ft 5 in | 926 Lb | 6 ft 6 in | 379 Lb | Pulgadas/Libras |
| TORO C-305 | 21 ft 4 in | 705 Lb | 6 ft 6 in | 392 Lb | Pulgadas/Libras |
| TORO D-403/C | 16 ft 5 in | 882 Lb | 5 ft 3 in | 395 Lb | Pulgadas/Libras |
| TORO C-304/C | 19 ft 8 in | 705 Lb | 5 ft 3 in | 401 Lb | Pulgadas/Libras |
| TORO D-406 | 21 ft 4 in | 882 Lb | 6 ft 6 in | 430 Lb | Pulgadas/Libras |
| TORO D-405/C | 19 ft 8 in | 772 Lb | 5 ft 3 in | 432 Lb | Pulgadas/Libras |
| TORO C-306 | 26 ft 3 in | 661 Lb | 6 ft 6 in | 430 Lb | Pulgadas/Libras |
| TORO D-407 | 26 ft 3 in | 772 Lb | 6 ft 6 in | 474 Lb | Pulgadas/Libras |
