Awning cradle / load tray
(800×400 mm)

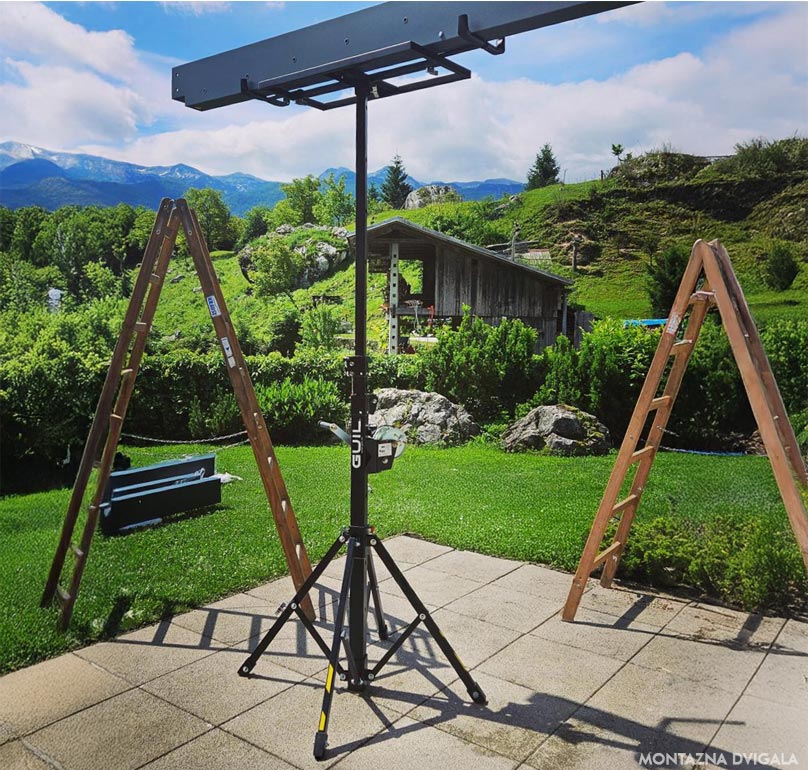

Adaptor specifically designed to lift awnings and cylindrical objects with our ELC lifters.
The BC-11 adaptor consists of a load-platform with two detachable arms which are designed to hold cylindrical items. As well as an awning lifter, it can be used as a normal platform just by detaching the cradle arms.

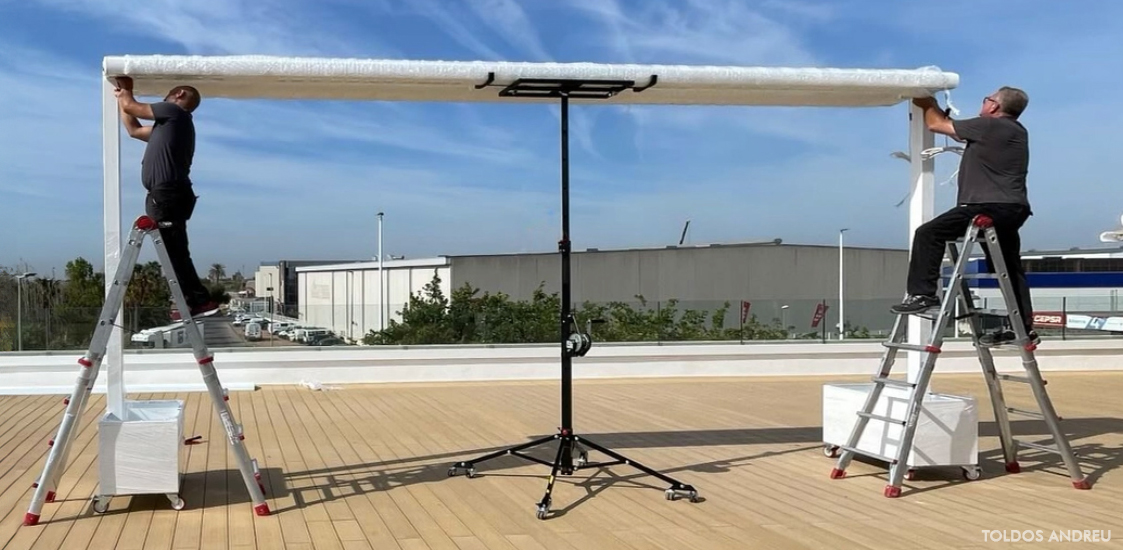

GUIL’s lifters have a compact footprint, which allows them to work in tight spaces such as balconies, making the lifter and the BC-11 platform the perfect combination for awning installation.
This useful adaptor has a different reference depending on the lifter model it is used with, see below:
▪ Ref. BC-11/M: Awning platform with a Ø 35 mm spigot, designed to be used with ELC-720/I, ELC-730/R, ELC-725, ELC-725/D and ELC-750 material lifts (Net Weight: 7.35 kg)
▪ Ref. BC-11/H: Awning platform with a Ø 35 mm spigot, designed to be used with ELC-710 and ELC-700 material lifts (Net Weight: 7.45 kg)
▪ Ref. BC-11/M2: Awning platform with a Ø 55 mm spigot, designed to be used with ELC-765, ELC-775 and ELC-785 material lifts (Net Weight: 7.40 kg)
DIMENSIONS & MATERIALS: The BC-11 awning adaptor is made from steel and has an anti-scratch EPOXY paint finish to protect it from scratches and from the elements during outdoor work.
▪ Awning lifter arms open: 117 X 40 cm
▪ Platform only: 80 X 40 cm
Note: By placing this load tray on top of the ELC material lifts you will gain 40 mm in height.
MULTIPLE APPLICATIONS
Thanks to the wide range of models, adaptors and accessories, our lifting towers are used in many fields, and are acknowledged worldwide for their high quality and durability.
AWNING CRADLE & LOAD PLATFORM for ELC material lifts
The awning platform has been designed to hold and lift awnings and also cylindrical objects. The load is held by two steel arms covered with tough plastic tubing to avoid scratching the awning. The arms are attached to a rectangular load platform, also made of steel, and are tightened with a metallic ergonomic knob.
> Versatile – also a load-tray
The BC-11 is both an awning lifter and an 80*40cm rectangular load tray – 2 adaptors in 1. By removing the arms, and fastening them on the underside of the platform, the awning cradle is transformed into a load-tray to lift loads of other shapes, making the adaptor a multi-use tool to lift awnings, cylindrical items, and many other objects. Removing the arms is quick and easy, and can be done without taking the adaptor off the lifter, meaning minimum time lost.
> Not just for installation

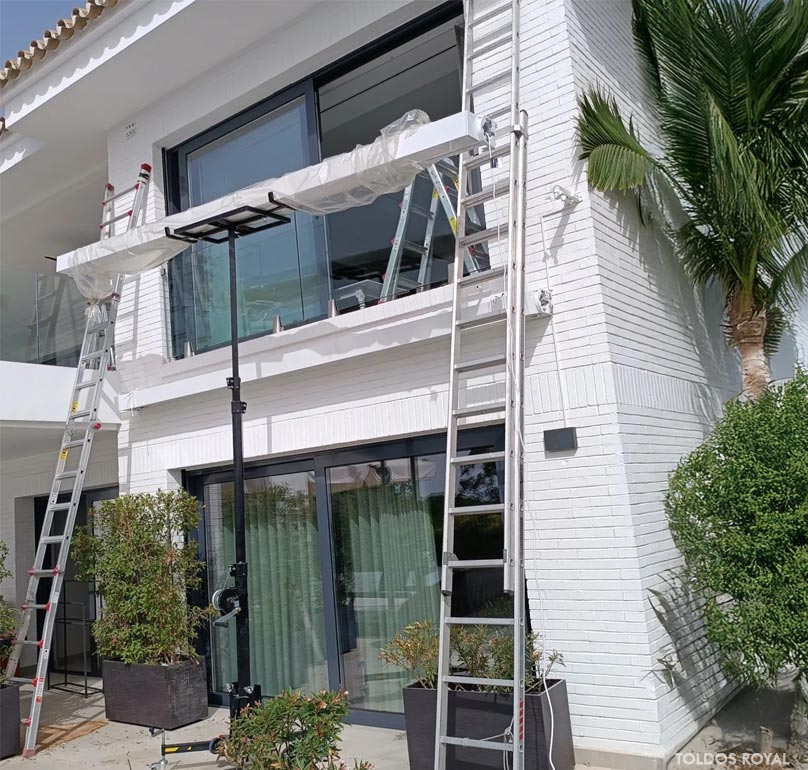

Your ELC awning lifter starts to help even before you’re on the upper floor (the balcony, terrace, etc) to install the awning. It will lift the awning itself up to the balcony – it’s often difficult to take a long awning up the stairs – and then, as a load-tray, your tools and other items as well.
> Compact design for transport and storage
For transport and storage, the knob can be loosened to swivel the arms towards the centre of the platform to occupy less space in vans, store-rooms, etc, and to make the BC-11 more convenient to transport.
> Quick, easy and comfortable lifting
The cradle is fitted to the ELC lifter and prepared for work very quickly and simply. All GUIL’s lifters are easy to operate, even for one person, and their quick set-up means that you can start work as soon as you arrive.
